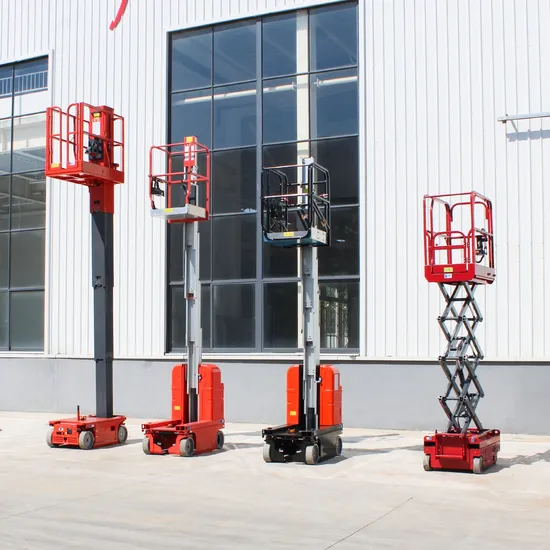

6 M Self-Propelled Vertical Lift Single Aluminum Mast Aerial Working Platform
| US$3,150.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AWMP-1100
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Transport Package
Standard Seaworthy Package
Specification
1300x700x1100
Trademark
Kudat
Origin
Cn
HS Code
8501101000
Product Description
Specification:| Model | AMWP6-6100 |
| Rated capacity | 159kg |
| Outreach working platform load | 114kg |
| Max. Working height | 8m |
| Max.Platform height | 6m |
| Overall lenght | 1.36m |
| Overall width | 0.82m |
| Overall height | 1.98m |
| Platform size | 1.3m*0.7m*1.1m |
| Platform outreach size | 0.51m |
| Max.ground clearance(stowed) | 0.1m |
| Max.ground clearance(raising) | 0.023m |
| Wheelbase | 1.04m |
| Min.turning radius(inner tyre) | 0.3m |
| Min.turning radus (outer tyre) | 1.8m |
| Lift motor/Drive motor | 1.3KW/0.5kw |
| Drive speed(stowed) | 4km/h |
| Drive speed (raising) | 1.1km/h |
| Lift/down speed | 52/53 sec |
| Battery | 2×12V/100Ah |
| Charge | 24v/15A |
| Max. Gradeability | 25% |
| Max.Working angle | 1.5° |
| Tyre | Φ305*100mm |
| Total weight | 1060kg |
