Coal Tar Dewatering Decanter Centrifuge Machine of Closed Explosion-Proof

Coal Tar Dewatering Decanter Centrifuge Machine of Closed Explosion-Proof

US$36,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
LW/ LWS
Type
Centrifuge
Object
Solid Liquid Separation
Separation Mode
Sedimentation Type
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Horizontal Spiral Centrifuge
Pressure
Low Pressure
Condition
New
Material
SS304 or SS316 or Other Anticorrosive Materials
Bearing
S-K-F, NSK as Optional
Certification
GMP/CE/ISO/Atex
After-Sales Service Provided
Field Installation, Commissioning and Training
Transport Package
Wooden Case
Specification
Based on model
Trademark
SHENZHOU
Origin
China
HS Code
8421192000
Production Capacity
1000sets/Year

Packaging & Delivery

Package Size
3500.00cm * 1200.00cm * 2000.00cm
Package Gross Weight
4000.000kg

Product Description

Product Description

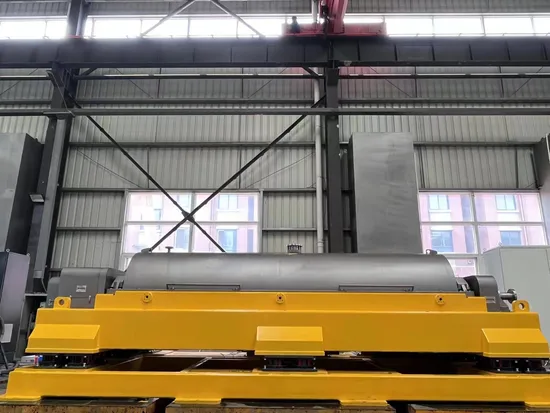

LWS Continuous Explosion-proof decanter centrifuge
The centrifuge is used in explosive or flammable applications in chemical industry, petrochemical industry, pharmacy industry and other industries, and any leakage of gas into the external atmosphere is prohibited in the course of solid-liquid separation, or used in solid-liquid separation in applications in which explosion may be caused if the external air enters the inner chamber of the centrifuge. Both ends of the bowl and the liquid outlet are airtight to achieve the airtight and flameproof effect.
Structure and principle of airtight seal The gas-tight seal is a special structure consisting of the mechanical seal and inert gas supply device. It effectively prevents the external air from penetrating into the inner chamber of the centrifuge, and prevents the gas inside the centrifuge from leaking into the external environment.
The seal device consists of several seal rings and glands, and separates the inner chamber of the centrifuge from the surrounding environment. The inert gas is injected into the space among the seal rings, and then penetrates into the inner chamber of the centrifuge and the external environment through the narrow sealing clearance.
The pressure of inert gas is higher than those of the inner chamber of the centrifuge and the external atmosphere, therefore, entrance of air into the inner chamber of the centrifuge or escape of the gas out of the inner chamber of the centrifuge can be avoided.
LW series Horizontal Decanter Centrifuges feature full-automatic continuous feeding and discharge . This chemical separation equipment has been applied two-phase(solid-liquid) and three-phase(solid-liquid-liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.
For different types of raw materials. We will make corresponding adjustments and settings. To ensure that different raw materials can achieve the best separation effect.
Our decanter centrifuge can operate 24/7 with full automation. Provide efficient and powerful assurance for your separation operations.

Product Parameters

Model
Technical parameter motor power outline dimension(mm)
Machine weight
(KG)
(Diameter)mm
Rotation speed
rpm

Length mm

Separation factor
G

capacity
M3/h

Main motor KW

Vice motor
KW

Dimension:
L×D×H
LW250×1000 250 3600 1000 1813 1-3 7.5/11 4/5.5 2065×1050×800 1100
LW360×1200 360 3500 1200 2467 3-8 11/18.5 7.5/11 2600×1500×850 1900
LW360×1500 360 3500 1500 2062 3-8 11/18.5 7.5/11 2800×1400×850 2000
LW420×1750 420 3200 1750 2406 4-20 30/37 11/18.5 3120×1580×1050 3000
LW450×1600 450 3200 1600 2578 5-25 30/45 11/22 3780×1050×1180 3500
LW450×1800 450 3200 1800 2578 5-25 30/45 11/22 3985×1050×1180 3600
LW450×2000 450 3000 2000 2266 5─25 30/45 11/22 4320×1050×1180 3800
LW500×1800 500 3000 1800 2517 10-30 37/55 15/22 4200×1110×1200 4300
LW500×2100 500 3000 2100 2517 10-30 37/55 15/22 4500×1110×1200 4500
LW550×1800 550 3000 1800 2769 10-35 45/55 18.5/22 4380×1160×1230 4800
LW550×2200 550 2800 2200 2412 10-35 45/55 18.5/30 4780×1160×1230 5000
LW650×1750 650 2000 1750 1454 20-50 75/90 30/37 4576×1300×1250 6000
LW650×2000 650 2000 2000 1454 20-50 75/90 30/37 4900×1300×1250 6200
LW800×2000 800 1800 2000 1450 40-100 90/110 45/55 6052×1460×2100 10000
LW1000×2350 1000 1600 2350 1432 50-140 110/132 55/75 6850×1860×2300 12800

Company Profile
1. Shenzhou Machinery Equipment Co., Ltd. is a professional centrifuge supplier.
2.We have an experienced team and professional design institute with over 30 years of experience in centrifuge machinery.We sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
3.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on.
4.At the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
