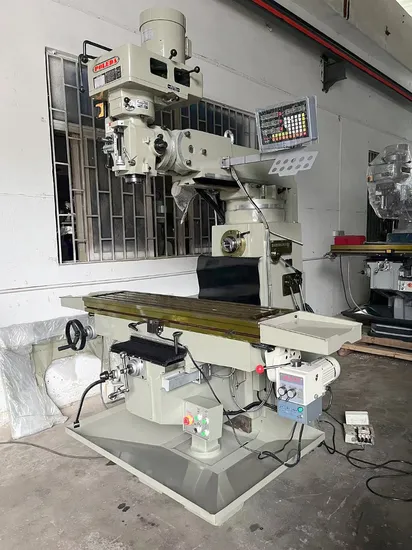

6h-Lw Multi-Functional Vertical Integrated Strong Milling Machine Made in China

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Unmatched Versatility: The vertical and horizontal dual-purpose milling machine boasts a variable spindle axis direction, which can be effortlessly adjusted to cater to specific processing needs. This adaptability not only suits diverse processing scenarios but also significantly boosts efficiency and productivity.
Robust Performance: Thanks to the variable spindle axis direction, this versatile milling machine stands out with its extensive usability and superior capabilities. It skillfully processes workpiece surfaces at various angles to the horizontal, satisfying a broad spectrum of processing requirements.
Exceptional Adaptability: Tailored for complex processing tasks, the vertical and horizontal dual-purpose milling machine excels in plane, surface, and unique angle processing. Simply adjust the spindle axis direction to tackle even the most demanding challenges with ease.
Boosted Efficiency: By modifying the main shaft axis direction, this innovative milling machine allows for the processing of multiple surfaces with just a single setup, effectively minimizing workpiece repositioning and maximizing production efficiency.
Intuitive Operation: Despite its formidable functionality, operating the vertical and horizontal milling machine is remarkably straightforward. Users can seamlessly switch between vertical and horizontal modes to meet varying processing demands with ease.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
1. Bed Structure
Engineered for Excellence: The double-column bed structure of the vertical and horizontal milling machine is celebrated for its exceptional strength and rigidity, guaranteeing precision and stability. It features a sliding bed that efficiently supports the table and spindle, minimizing vibration and noise.
2. Workbench Structure
Precision and Flexibility: The workbench is pivotal in the vertical and horizontal milling machine, securely holding the workpiece in place. Equipped with T-slots for easy clamping, it allows horizontal, vertical, and rotational movement, perfect for bevel machining.
3. Main Shaft Structure
Versatile and Powerful: The spindle, available in vertical or horizontal configurations, supports either chuck or tool handle clamping systems. It offers high speed and torque to accommodate various machining needs, with a cooling system that ensures optimal performance.
4. Feed System
Precision in Motion: The feed system, integral to the milling machine, comprises a feed shaft, servo motor, and guide rail. Controlling tool movements precisely, the system ensures high accuracy and speed, driven by its advanced servo motor and stabilized by the guide rail.
5. Structural Advantages
Comprehensive Excellence: The vertical and horizontal milling machine is designed for compactness, functionality, and versatility. It excels in accuracy and automation, enabling high-efficiency processing, reducing manual intervention, and saving both time and cost.

Product name	Vertical and horizontal milling machine
Product model	6H-LW
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.
