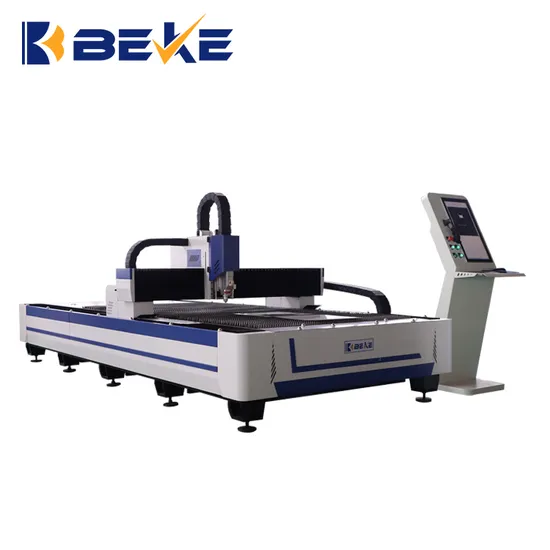

3000W 4000W CNC Laser Cutting Machine Metal Multi 1500 Watt 3D Fiber Laser Cutting Machine
Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Technology
Fiber Laser
Standard Output Power
3000W
Laser Wavelength
1070nm
Effective Cutting Range
3000mm*1500mm
Laser Type
Fiber Laser
Model No.
Bk-3000W-D220-6m
Transport Package
Container Directly
Specification
4800*2200*1800
Trademark
BEKE
Origin
China
Product Description
Detailed PhotosProduct Description
Packaging & Shipping
customer
Company Profile
| Model | BK-3015-3kw |
| Output power | 3000W |
| Laser type | Fiber Laser |
| Laser wavelength | 1070±10nm |
| Laser repetition rate | CW |
| Output power stability | ±1% |
| Minimum cutting line width | 0.2mm (material below 0.4mm) |
| Maximum cutting width | 3000mm×1500mm |
| Mass production thickness | ≤25mm (carbon steel), oxygen purity above 99.95% ≤16mm (stainless steel), nitrogen purity over 99.999% |
| Workbench mechanical precision | ±0.03mm/m |
| Repeatability | ±0.02mm/m |
| Software | The software has the function of segment cutting |
| Power | Three-phase five-wire AC 380V±5%, 50Hz±1% |
| Remarks: The cutting material carbon steel is Q235, and stainless steel is 304. The surface of the material must be free of oil, rust, paint and scale, meeting the national ISO standard. | |
| No. | Item | Model | Brand |
| 1 | Fiber laser cutting machine | BK-3015/3000W | BEKE technology |
| 2 | Cutting head | Raytool | Swiss |
| 3 | Laser | Raycus | China |
| 4 | Servo drive and motor | Fuji | Japan |
| 5 | Special CNC cutting system | Cypcut | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Japan |
| 8 | Proximity switch, etc | Schneder | France |
| 9 | Precision rack | ROR | German |
| 10 | Reducer | Modori | France |
| Model NO. BK-3000W-D220-6M Structure Type Desktop Laser Classification Fiber Laser Laser Technology Fiber Laser Cutting Laser Type Fiber Laser Cooling Method Water-Cooling Standard Output Power 3000W Effective Cutting Range 3000mm*1500mm Rated Power Consumption 3kw Cuttable Material Stainless Steel, Carbon Steel, Aluminum, Copper Laser Repetition Rate Cw Laser Wavelength 1070nm Transport Package Container Directly Specification 4800*2200*1800 Trademark BEKE Origin China HS Code 8456110090 Production Capacity 50 Set/Month |
