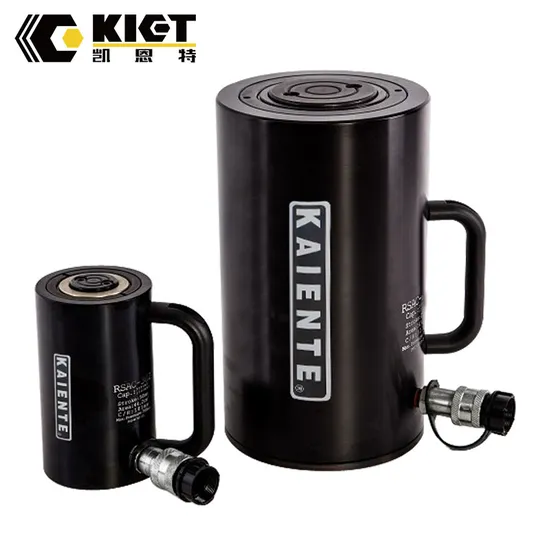

Rac-504 50ton Stroke 100mm Single Acting Aluminum Hydraulic Cylinder

Product Description

Company Profile

Jiangsu Canete Machinery Manufacturing Co., Ltd. is a national high-tech enterprise and manufacturer of hydraulic devices special for large-scale heavy-duty jacking and lifting field. Integrating system design, product R & D, production, marketing and import & export, KIET provides a full range of high quality hydraulic tools and professional comprehensive solutions for customers.
Relying on advanced scientific technology in Europe and America and gathering elite talents at home and abroad, KIET focuses on solving major engineering problems in the fields of heavy load, precise control, multi-logic actions, multi-point control, etc.
After more than 20 years development, KIET has established a rigorous production and operation system and a perfect quality control system. Through continuous innovations, serialized products and solutions are gradually formed in the fields of multi-point synchronous lifting,pushing,hoisting, translation, tensioning, weighing of asymmetric large components, space posture adjustment, and intelligent walking of large equipment and components. KIET has won praise from domestic and foreign customers for its high-quality products and excellent services. At present, KIET's business has spread to more than 100 countries and regions in the world, covering roads and bridges, construction, petrochemicals, metallurgy, power, mining, ships, offshore engineering field.
Adhering to the core concept of "Ingenuity for manufacturing, service for the world", KIET continues to expand scientific research strength, forge ahead, strive for first-class, and provide customers with safe, reliable and efficient equipment and service.
Product Description
Introduction
Single-acting aluminum hydraulic cylinder have a wear-resistant oxide and strong coating surface, and a steel base to protect from damage when working on rough surfaces; single-acting structure, suitable for shipyards, steel plants, construction, power plants, oil and gas fields and other industries.
Features
1. Maximum working pressure: 700bar.
2. Composite support ring prevents side loads and extends service life.
3. Reduce the phenomenon of piston scraping caused by eccentric load and prolong the service life of the cylinder
4. The surface is completely hardened to avoid damage and extend service life.
5. Steel base and saddle prevent damage caused by load.
6. Integral retaining ring prevents excessive extension of the plunger and can withstand the maximum lifting force of the cylinder.
7. 3/8"-18NPT coupler and dust cap included on all models
Product Parameters

MODEL	CAPACITY (T)	MAX. WORKING PRESSURE (MPA)	CLOSED HEIGHT (MM)	STROKE (MM)	EFFECTIVE AREA (CM²)	OIL CAPACITY (CM³)	OUTSIDE DIAMETER (MM)	WEIGHT (KGS)
KET-RAC-202	20	70	174	50	31.2	156	85	3.6
KET-RAC-204			224	100		312		4.1
KET-RAC-206			274	150		468		4.6
KET-RAC-302	30	70	181	50	44.2	221	100	4.5
KET-RAC-304			231	100		442		5.2
KET-RAC-306			281	150		663		5.9
KET-RAC-502	50	70	186	50	70.9	354	130	8.5
KET-RAC-504			236	100		709		9.8
KET-RAC-506			286	150		1063		11.1
KET-RAC-1004	100	70	271	100	143.1	1431	180	19.6
KET-RAC-1006			321	150		2147		21.9
KET-RAC-1008			371	200		2863		24.2
KET-RAC-1506	150	70	343	150	227	3405	230	33.3
