Ribbon Blender Pigment Mixing Machine Dry Powder Mixer
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
TPB-500
Application Area
Food
Certification
CE
Condition
New
Stirring Type
Spiral
Working
Shear Mixer
Name
Ribbon Blender Machine Dry Powder Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
Plywood Wooden Carton
Specification
CE
Trademark
DAHEPACK
Origin
China
HS Code
84743900
Production Capacity
30units/Month
Product Description
Ribbon blender pigment mixing machine dry powder mixer
Introduction:

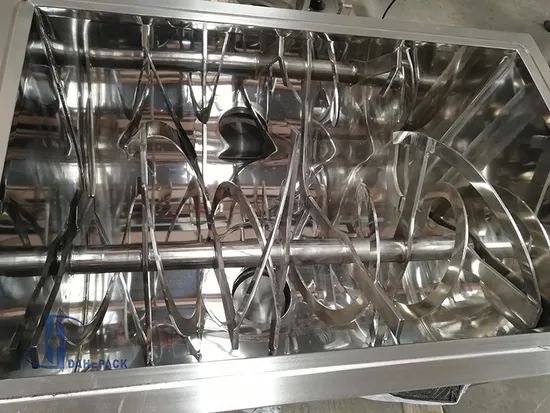

This is a horizontal Ribbon Blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing!
Our ribbon Blender can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
Standard Specifications:
| Model | DH-JD-200 | DH-JD-300 | DH-JD-500 | DH-JD-1000 | DH-JD-1500 | DH-JD-2000 |
| Full Volume | 200L | 300L | 500L | 1000L | 1500L | 2000L |
| Turning Speed | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm | 46rpm |
| Mixing Vessel | 3mm | 3mm | 3mm | 4mm | 5mm | 6mm |
| Wall Plate | 6mm | 8mm | 8mm | 8mm | 8mm | 12mm |
| Main Shaft | 57*6 | 76*6 | 76*8 | 89*8 | 102*8 | 114*10 |
| Mixing Blade | 6mm | 6mm | 6mm | 8mm | 10mm | 12mm |
| Whole Length | 1400 | 1530 | 1700 | 2000 | 2400 | 2600 |
| Whole Width | 900 | 1000 | 1200 | 1300 | 1400 | 1500 |
| Total Height | 1450 | 1550 | 1700 | 1960 | 2050 | 2200 |
| Total Weight | 250KGS | 350KGS | 500KGS | 700KGS | 1000KGS | 1300KGS |
| Total Power | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 22KW |
| Air Consumption | 4-6Bars | |||||
| Power Supply | 3 P AC208-415V 50/60HZ | |||||
Factory
