Wholesale Factory AC Motor Starting Capacitors for Generator Motor (CD60)

Product Description

CD60 Series Construction Dielectric: aluminium foil & electrolyte paper Aluminum can Features High class insulating High strength Uneasy broken Reliable and long in service life Typical applications Suitable for use in single phase A.C. motors Terminals Screw Fast on Single Fast on Double Fast on Wires & Cable

Technical data and specifications
Operating temperature range		40-55 ºC
Rated capacitance CR		21 µF~1600 µF
Tolerance		0~+20%
Rated voltage VR		110VAC~330VAC
Rated frequency FR		50/60Hz
Dissipation factor tan δ		tgd≤0.10, tgd≤0.15 (20 Centigrade,100Hz)
Surge Volt between lugs		Applying 1.2 times rated voltage for 2 second
Surge Volt between lug & case		2000VAC 10 seconds non-broken down
Load Life		55 ºC , 110~165VAC, 1S on, 59S off, 30000 55 ºC , 220~330VAC, 1S on, 59S off, 15000 Capacitance change rate: ±15% Initial tested Dissipation Factor tgd: ≤0.20

Dimensions (mm)
Capacitance (uF/MFD)	110VAC		125VAC		165VAC
	Φ	H	Φ	H	Φ	H
50	34	50	34	60	34	60
75	34	60	34	60	34	60
100	34	80	34	80	34	80
125	34	80	34	80	42	80
150	34	80	34	80	42	80
200	34	80	34	80	42	80
250	34	80	34	80	45	90
300	42	80	42	80	45	90
350	42	80	42	80	50	95
400	45	90	45	90	50	95
450	45	90	50	95	50	95
500	45	90	50	95	50	95
600	50	95	50	95	50	95
700	50	100	50	100	55	100
800	50	100	50	100	55	100
1000	55	100	55	100	60	100
1200	55	100	60	100	60	120
1400	60	100	60	120	65	120
1600	65	120	65	120
Dimensions (mm)
uF/MFD	220VAC		250VAC		300VAC		330VAC
	Φ	H	Φ	H	Φ	H	Φ	H
50	34	80	34	80	34	80	42	80
75	34	80	34	80	42	80	42	80
100	34	80	42	80	50	95	50	95
125	50	95	50	95	50	95	50	95
150	50	95	50	95	50	100	50	100
200	50	95	50	95	50	100	55	100
250	50	95	50	95	55	100	55	100
300	50	95	50	100	55	100	55	100
350	50	95	50	100	55	100	60	100
400	50	100	55	100	60	100	60	100
450	50	100	55	100	60	100	65	120
500	55	100	55	100	65	120	65	120
600	55	100	60	100	65	120	65	120
700	55	100	60	100	65	120
800	60	120	65	120
1000	65	120	65	120
1200	65	120
1400
1600
Note: Can be manufactured according to customer's request.

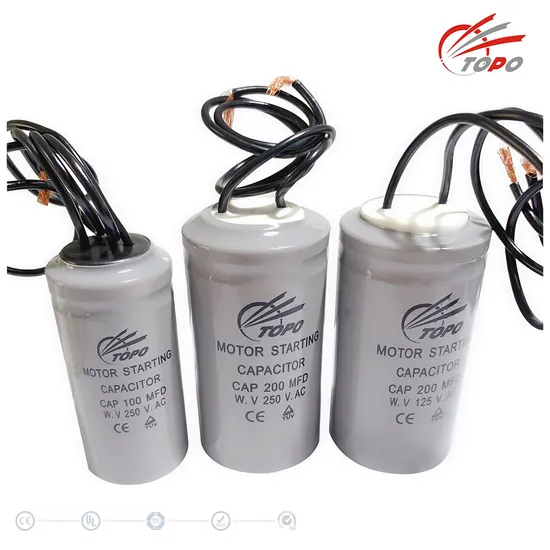

Capacitors Details:
High-Return Solutions Specifically to your satisfaction.
Most of our customers have been doing business with us for more than a decade, with full trust in our capabilities and reliability. We take pride in solving different challenges to customers in a productive way. Maybe you need a special collection, a distinct packing, an urgent delivery or any other supports, our team is here ready to offer you the integrated solutions and save you more.

OEM and ODM Contract manufacturing and housing molding for your brand.
Your brand and personal preferences could be custom on the products and packings. As a comprehensive capacitor manufactuer, Topo possesses the extensive custom design capabilities to meet your specific requirements, which help you to extend your brand's advantages.

ECO Friendly and Full Material Speaking of quality, green material is the very start. Topo only utilizes the materials friendly to the environment with a social responsibility perspective. Besides, great quality films make excellent capacitors. We never cut corners on materials, but apply full materials for each parts.

Free Sample for Testing An adequate amount of free samples could be offered for your testing of the important electrical parameters. From these aspects those prove that our products are of high quality and can stand the tests.
Rest assured and get your samples right away!

FAQs Topo knows about your general concerns. Check the Q&A that will help you save time and worries in the first place. If your question is not listed, please contact us and we are happy to help.
Can the Topo capacitors be used in the AC and DC circuits?
Generally, our capacitors could apply with both circuits of AC and DC. Yet most of our products are for AC circuit purpose.
Are the Topo capacitors compliance products of EU CE and RoHS?
Yes. All of our capacitors comply with the CE, VDE, and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. Topo has the capability of OEM and ODM. You are free to choose custom services or our regular high-standard capacitors.
How long does a quotation take?
In most cases, your enquiry will be answered within 24 hours. Rest assured that your enquiry will be taken seriously.
Can I get samples?
Sure. We offer adequate samples for your testing free of charge. However, the freight is not covered.
