TMAXCN Brand Laboratory Battery Slurry Vacuum Planetary Mixer with 500ml Volume
| US$1,500.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MSK-SFM-16
Certification
CE, ISO
Condition
New
Stirring Type
Diving
Warranty
1 year
Working
High Speed Mixer
Mixer Type
Planetary Mixer
Transport Package
Wood Packing
Specification
20-100 foot cabinet
Trademark
TMAX
Origin
China
Product Description

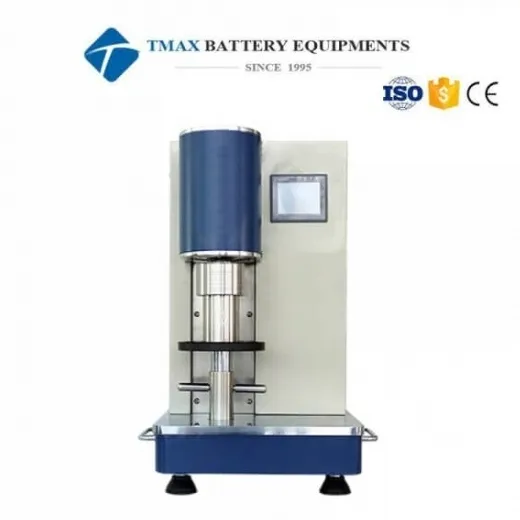

Dual-Shaft Planetary Vacuum Mixer with Two Containers (50mL&150mL ) MSK-SFM-16is a UL ready Compact Dual-Shaft Planetary Vacuum Mixer which can mix slurry much more uniform than the single shaft and remove gas bubble more efficiently. It has a built-in pump which can evacuate the mixing container to -0.08 Mpa with three segments programmable mixing speed from 0 - 600 rpm. It is a high-quality tool for preparing battery electrode paste and various ceramic materials in the research lab. We can also offer Slurry Vacuum Mixer. Welcome your inquiry to us for more details.| Voltage Input | l Single Phase 208~240VAC, 50/60hz l AC power plug is not included. Please click here to order the plug) |
| Power | 200W |
| Rotary Speed | 0 - 600 RPM |
| Mixing Container | l Two vacuum sealed containers are included. 150ml stainless steel. l Dual helical ribbon mixing blades are built on the lid of the container. l 50mL and 500 ml SS container is available at extra cost |
| Vacuum Pump & Vacuum Level | l Built-in single stage vacuum pump l Vacuum Level: -0.08~0.09 Mpa |
| Parameter Contol Panel | l 3.5" Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off l Mixing Time: 0 - 600 minute l Mixing Speed: 0 - 600 rpm and 3 variations in 1 setting possible l Note: Max. mixing speed depends on slurry viscosity. Max.10000 Mpa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry |
| Dimensions | 330mm x 330mm × 580mm (L x W x H) |
| Shipping Dimensions | 18'' x 18'' x 24'' (L x W x H) |
| Net Weight | 70 lbs |
| Warranty | Two years limited with lifetime technical support |
| Application Notes | For best result, please consider ordering a filter to remove larger particle in slurry ( click picture below to order ) |
