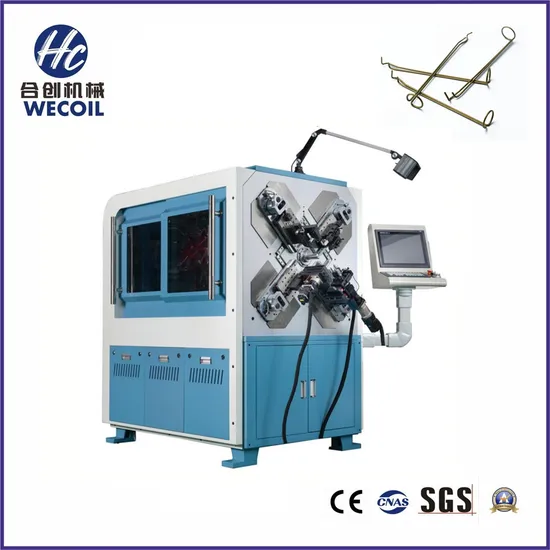

HCT-NM1220X 12-16 Axis CNC Spring Forming Machine With Wire Rotation

HCT-NM1220X 12-16 Axis CNC Spring Forming Machine With Wire Rotation

US$50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HCT-NM1225X
Warranty
1 Year
Certification
CE
Wire Size Range
0.2-2.0mm
Number of Axis
12-16 Axis
Wire Feeding Pairs
2 pairs
Max Feeding Speed
120m/min
Feeding motor
2.7kw
Quill motor
1.0kw
Wire Rotation motor
2.7kw
Spinner motor
0.4kw
Lateral movement Forming motor
1.0kw*4
up and down movement Forming motor
1.2kw*4
Related Wire Feeding Machine
HCD-200
Packing Dimension
L2000*W1900*H2200
Weight
1500kg
New machine
Wecoil New Machine
Transport Package
Vacuum Packaging Wooden Case
Specification
L1600mm*W1120*H1750mm
Trademark
WECOIL
Origin
China
HS Code
8463300000
Production Capacity
500 Sets

Product Description

WECOIL Spring Machinery--Professional for CNC Spring Machine over 30 years, the leader for CNC Spring Machine Industry.
Company Profile:Wecoil (Dongguan Wecoil Spring Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic Wire Feeding machine, the wire size covers 0.15mm to 10.0mm.
WECOIL Advantanges:1. The founder Mr. Lau has 34 years experience in CNC Spring Machinery Industry since 1986.
2. Over 20 different types of CNC Spring Coiling Machine, CNC Spring Forming Machine, CNC Versatile Spring Machine to fullfil clients with more choices.
3. 4000m² 2 floors workshop to guarantee enough inventory.
4. Adopt the most widely used Taiwan Hust Controller and Japan Sanyo/Yaskawa Motor and high-end precision bearings such as NSK/NTN/IKO.
5. All the workers, Assembly Team, Electrical Team, Spring Testing Team, Sales team, even the Packaging Personnel are with at least 7 years experience in Spring Machinery Industry which guarantee our machine with high performance. HCT-NM1220X--Machine Introduction: 1.HCT-NM1220X 12 axes CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Japan Servo Motors to control the feeding system and Cam system synchronously. It is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, Magazine spring, Spiral spring and any kind wire forms.
2. It is designed with no rocker arm and camless, the 4pcs slide bases is separately controlled by eight Servo Motors, each slider can be installed with 1~2pcs tools. There are total 12 axis, 8pcs forming axis (It's controlled separately by 8 Servo Motors, 4pcs up & down movement motor, 4pcs lateral movement motor), 1pc Wire Feeding Axis, 1pc Quill rotating Axis, 1pc Wire Rotation Axis and 1pc Spinner Axis.
3. It's with wire rotation function, so it can rotate at 360 degrees and it's convnient to make the complex angles and hooks with short time.
4. It's optional with servo cutter, so it's easy to cut the big wire and greatly reduce the damages to the quill and machine.
5. It's optional with Pneumatic Front Safety Door, which can greatly increase the safety.
6. It's controller supports Chinese and English monitor, easy to operate. HCT-NM1220X--Machine Photo and working interface
Related Automatic Wire feeding machine HCD-200 (It can also optional with larger one)
HCT-NM1220X-Machine Catalog & Description & Specification
WECOIl--Packaged with Vaccum Package Wooden Case and Loading
WECOIL--Springs Samples tested on Wecoil Spring Machinery

Purchasing Processing
Wecoil High Quality professional pre-sale, sale and after-sale service. 1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery. 2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution. 3. Quick and safe shipment as per your requirement,such as the booking, container loading, and shipping documents etc... 4. WECOIL will provide technical support by email and phone, technicians will be available at your side if necessary. 5. One-year guarantee period exclude the easy torn parts.
Any Consultations and Inquiries are welcome!
We strive to create a more powerful tomorrow for customers!
