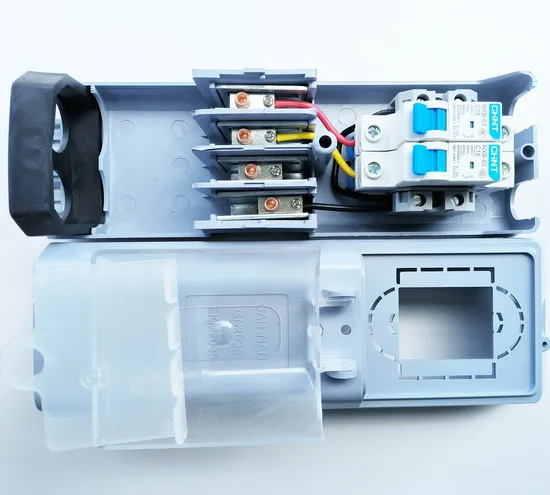

Fuse Cut-out Cable Cross Gland Terminal Block Connection Unit with Circuit Breaker

Product Description

LEALITE aim to provide you with the best lighting options. We offer affordable prices and a wide selection of high-quality lighting solutions. If you have any questions about the exceptional products we offer or require assistance in finding the right solution for your needs, our team of lighting experts are ready to help!
We have many different options to help you find exactly what you need when installing a brand new system or upgrading old fixtures.
Please inform us your detailed requirements. Our team is always happy to help in any way.
LEALITE offers a wide range of steel pole products: area, roadway, high-mast and decorative lighting poles; utility distribution and traffic-signal poles; custom-designed poles.
MATERIAL
Lealite steel poles are manufactured of S335/S355/A36 grade steel, maintain a minimum wall thickness of .120″, and are circumferentially welded to the base, anchor bolts per ASTM A576,nuts washers and threaded portion of bolts are all hot dip galvanized.
FINISHING COAT
The material of the finishing coat is a gel coat that complies to SANS 1749 and is applied to a uniform thickness, providing a weatherproof, UV-resistant, flame-resistant and impact-strong surface in the color specified.
MECHANICAL PROPERTIES
Standard poles supporting a luminaire (lights) with a wind surface of 0.20m²will not have a pole top deflection of more than 5% of its height aboveground when subjected to a basic wind pressure of 500Pa. A safety factor of 2.5 times the total maximum wind-load is applicable.
QUALITY SYSTEM
Lealite poles are manufactured in accordance with SANS 1749 under the ISO 9001 quality system.
BASE PLATE
Poles for direct embedment in the ground can be provided with hot dipped galvanized base plate complete with hot dipped galvanized steel bolts and nuts. Base-mounted poles have a hot dipped galvanized flange plate that can be bolted to a foundation which is designed to withstand the forces the pole will experience in service.
Terminal Block
To meet demands, complete with terminal block and DIN rail for a miniature circuit breaker, will be provided and mounted to a bolt provided in opening door.
Lealite experience in the steel manufacturing process and our customer-driven marketing philosophy has enabled us to grow in the steel pole industry with sales throughout North and South America, Europe and Africa. We strive to exceed our customers' expectations no matter the quantity, size, design or volume of their order. Our goal is to produce the highest-quality products in a timely manner and at a competitive price.

Type and accessories, spare parts		Description	Drawing No.
SPIGOT MOUNTING	Mounted into straight pole, hot dipped galvanized	Single side entry spigot	LD-01SA series
		double side entry spigot	LD-01DA series
		triple side entry spigot	LD-01TA series
		Quadruple side entry spigot	LD-01QA series
FLOODLIGHT MOUNTING	Hot dipped galvanized	Floodlight mounting for single floodlight- Type of floodlight to be specified	LD-FLSA series
		Floodlight mounting for double floodlights- Type of floodlight to be specified	LD-FLDA series
HIGHMAST MOUNTING	Hot dipped galvanized	Mounting height from 16 meters to 30 meters	LD-HM series
DECORATIVE LANTERN	Hot dipped galvanized, painted in the colour to be specified	2 arm version
		3 arm version
		4 arm version
		5 arm version
FLAG POLE	Completer with rope and rope attachment
BASE PLATE	For rooted mounting pole	Base plate assembly 300*300*3mm Base plate assembly 400*400*5mm	Anchor bolt kit
MINIATURE CIRCUIT BREAKER		5A/10A
