Fmc80 Smith Oil Flow Meter Diesel Digital Flowmeter

Product Description

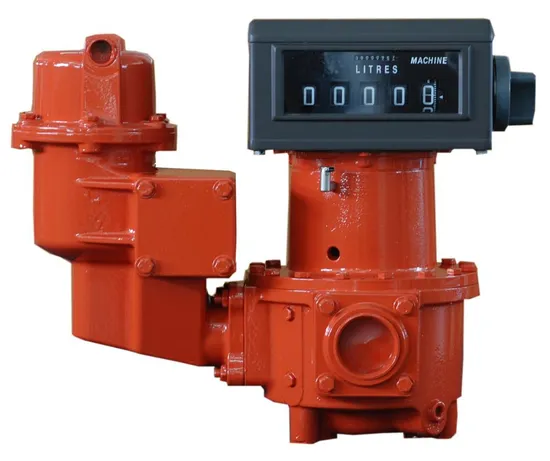

FMC80 Smith Oil Flow Meter Diesel Digital Flowmeter
1. Features&data:Diameter:50mm/2"
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm Characteristics • Excellent stepless adjusting mechanism allows a micro adjustment of the meter • High accuracy and repeatability over the widest range of flow; Superior accuracy
at constant flow • Low maintenance, no metal-to-metal contact in measuring chamber, long life service • Low pressure loss, a true gravity flow meter • Accuracy regardless of pressure fluctuations, temperature variation, viscosity • Choice of aluminum, cast iron and stainless steel materials of construction

Technical Specification
Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm / 1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume /Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max. Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU

2. Our products
FAQ
1.What is MOQ?
usually one set,and we can delivery by fast air express which not occupy space and not heavy for transport
2.Can you also OEM OR ODM for us?
Yes,we customize logo and brand according to customer requirement.

3.How about your machine quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of flow meters.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our machines are running well in more than 30 countries
