High Precision Stacking and Binding Machine for Steel Pipe

Product Description

Automatic Steel Tube Stacking Machine
Automatic tube stacking machine can realize fully automatic turning and packaging, adopts Siemens motion controller. It is mainly used for the finished pipe turning collection,stacking and bundling for tube mill production lines. It can be docked with the welded pipe production line, and the last process can combined with the flying saw cut off machine.After the straightening, sawing and inspection processes are completed, the steel pipe begins to enter the packaging process, steel pipe automatic palletizing machine adopts DSP technology to control, Can achieve steel pipe feeding, alignment, count collection, steel pipe in a row, rectangular and hexagonal packages are stacked, The automation of the whole process of traverse and weighing of the package, Then manually or automatically perform package and storage. Can meet the storage of finished products produced by the assembly line,Improve the working environment on site,Improve work efficiency and product packaging quality.

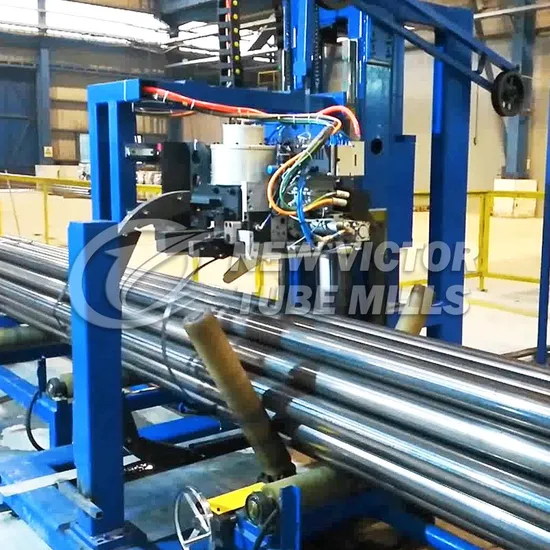

Steel Tube Strapping Machine
Steel pipe strapping machine is the last part of tube mill production line. It can bind the stacked pipes for convenient storage and transportation.
Details:
Widely used in online automatic packaging of all kinds of pipe products, including steel pipe, cast pipe, bar, C-type pipe, etc.
According to user requirements, it can be used for all kinds of stacking packaging, including square bag, round bag, hexagonal bag, etc.
Fast packing speed, tension can be arbitrarily adjusted
Optional man-machine interface can be formed according to different product types
The strapping machine has a mature structure, and the core components adopt international top brands to ensure quality, reduce operation failures, ensure the service life of the wearing parts of the machine, and reduce the maintenance time
Technical ParametersAutomatic Steel Tube Stacking Machine

Model	Tube Shape	Tube Size(mm)
10*10-25*25	Round, Square, Rectangular	φ12-32
NV-SP127	Round, Square, Rectangular	φ42-127
		35*35-100*100
NV-SP219	Round, Square, Rectangular	φ114-219
		60*60-200*200
NV-SP50	Square, Rectangular	12*12-50*50
NV-SP120	Square, Rectangular	60*60-120*120
NV-SP200	Square, Rectangular	100*100-200*200
NV-SP300	Square, Rectangular	150*150-300*300

Steel Tube Strapping Machine

Model	Tube Shape	Tube Size(mm)
NV-SP32	Round, Square, Rectangular	φ12-32
NV-SP127	Round, Square, Rectangular	φ42-127
		35*35-100*100
NV-SP219	Round, Square, Rectangular	φ114-219
		60*60-200*200
NV-SP50	Square, Rectangular	12*12-50*50
NV-SP120	Square, Rectangular	60*60-120*120
NV-SP200	Square, Rectangular	100*100-200*200
NV-SP300	Square, Rectangular	150*150-300*300

Company Profile
Jiangsu New Victor Industrial Co.,Ltd. founded in 1992, is a professional manufacturer of welding pipe machinery. over the years the company is committed to research and development and production of high frequency straight seam tube mill line, steel ball rolling mill machine, copper clad aluminum equipment, slitting machine and other metallurgical machinery.
As the main research and development of the company, VZH series of high frequency straight seam tube mill machine has more than 20 patents, and passed the CE, SGS, ISO and other international certification. We currently supply more than 1000 pipe mill lines to more than 90 countries and are expanding. We have a professional team of more than 200 people, including more than 30 high-end engineers and more than 20 after-sales service team. From consulting to order confirmation, from production to after-sales on-site installation training, we strive to ensure that everything we do is of the highest quality.
The company currently produces and operates two series of products:
The first series: textile machinery, mainly: Crochet machines, Chenille machines, fancy twisting machines and other products. The machine is mainly used in the field of fancy yarn spinning, can produce oblique wool yarn, ribbon yarn, loop yarn, pile yarn, wool-jet yarn, chenille yarn, etc. , create new fashion elements for ready-made garments, sweaters and other textiles. For the domestic fancy yarn textile machinery leading enterprises, products in the domestic market share in the forefront. The company's crochet machine was named "Jiangsu quality credit product" in 2006, the VFG-300 high-speed high-stretch yarn machine was recognized as a high-tech product by Jiangsu province in 2010, the XXNE200 high-speed Chenier Machine was awarded the Silver Award of Suzhou Industrial Design Products in 2019, and the XHND104 Fancy Yarn Twister was awarded the Gold Award of Suzhou Industrial Design Products in 2020.
The second series for metal processing machinery equipment, mainly: VZH16-273 series high-frequency precision welded pipe unit, VTL-10 -25 copper clad aluminum/steel bimetal processing equipment. Xzh16-273 series pipe welding machine can produce different specifications of precision welded steel pipe, can be widely used in automotive, construction, furniture and other industries, in 2019, the company was identified as"Jiangsu province high-strength steel pipe welding equipment engineering and Technology Research Center", "Research and development of key technologies of high strength steel pipe precision and super heavy series manufacturing units for automobile" won the third prize of 2021 China Machinery Industry Science and technology. Vtl-10-25 copper clad aluminum/steel bimetal processing equipment can produce copper clad aluminum, copper clad steel and other composite metal wire, can be used in high frequency signal wire, composite wire and other fields, the company's environmentally friendly and efficient copper-clad aluminum composite production line in 2007 won the National Torch Plan Project, Jiangsu Province, high-tech products. At present, the company is increasing the product to intelligent, digital and other direction of R & D efforts to promote traditional manufacturing to intelligent manufacturing upgrade. At the same time, the company is practicing a new business model, intended to extend to the downstream industry, from the production and sales of"Equipment" model to"New equipment + new products" model transformation.
