460*200mm 250ahr Professional High Percision High Speed Processing Hydraulic 2 Axis Automatic up and Down Handwheel Control Surface Grinder Grinding Machine

Product Description

Product Description
Discover unparalleled precision with the Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine, exclusively brought to you by Dongguan TranStar Machinery Co., Ltd. This state-of-the-art grinding machine is meticulously engineered to meet the highest standards of quality and performance, ensuring seamless operation and exceptional results for all your grinding needs.

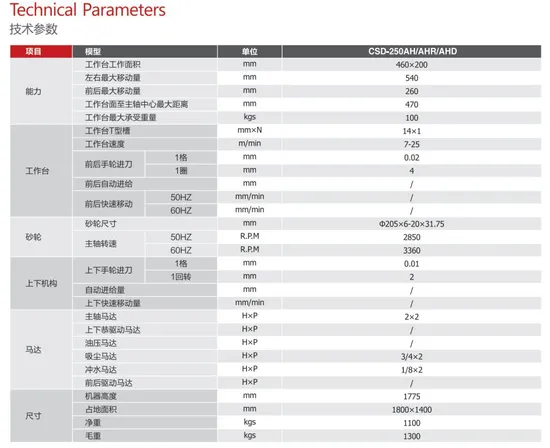

Product Parameters
Introducing the Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine by Dongguan TranStar Machinery Co., Ltd. Experience a marriage of robust design and advanced technology, tailored to deliver unmatched efficiency and unwavering reliability. Dive into its cutting-edge specifications, crafted to ensure consistent, top-tier performance for all your grinding tasks.

Mountings	Specifications		Unit	CSD-250AH/ AHR/ AHD
Ability	Table Dimensions		mm	460×200
	Maximum forward and backward movement		mm	540
	Maximum left-right movement		mm	260
	Distance between spindle center and work surface		mm	470
	Maximum bearing weight of working table		kgs	100
Work Table	Table T-slots		mm×N	14×1
	Table speed		m/min	7-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	4
	Auto-supplying from front to back		mm	/
	High speed moving from frong toback	50HZ	m/min	/
		60HZ	m/min	/
Grinding Wheel	Grinding Wheel Size		mm	Φ205×6-20×31.75
	Speed of mainshaft	50HZ	R.P.M	2850
		60HZ	R.P.M	3360
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.01
		a turing round	mm	2
	Auto-supplying volumn		mm	/
	High-speed mouing dimension from up to down		mm/min	/
Motor	Spindle motor		H×P	2×2
	Drive motor up and down		H×P	/
	Drive motor up and down		H×P	/
	Vacuum motor		H×P	3/4×2
	Dust catching motor		H×P	1/8×2
	Back and front driving motor		H×P	/
Machine Size	Mechanical height		mm	1775
	Occupied area		mm	1800×1400
	Net weight		kgs	1100
	Gross Weight		kgs	1300

Product Details:Delve into the intricate details of the Transtar CSD-250ah/Ahr/Ahd Manual Grinding Machine by Dongguan TranStar Machinery Co., Ltd. This sophisticated piece of machinery combines innovative technology with user-friendly features, making it an essential tool for precision grinding. Learn more about its unique characteristics and how it can revolutionize your grinding operations.
