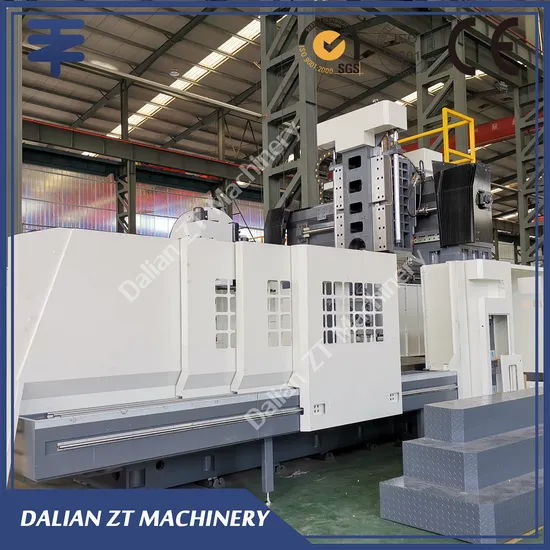

FANUC CNC Large Gantry-type Machining Center Machine
| US$100,000.00-125,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
XH3022
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
2500*1500mm
Weight of Workpiece
7000kg
X-Axis Travel
2600mm
Y-Axis Travel
1900mm
Z-Axis Travel
900mm
Spindle Taper
BT50
Spindle Speed
6000rpm
Spindle Motor Power
15/18.5kw
Tool Change
with arm
Power Supply
380V/3-P/50Hz
Transport Package
Polywood Case
Specification
Overall size: 2020x1970x2160mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8457101000
Production Capacity
1000 Sets/Year
Product Description
Product Description1. Features
XH2519 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the large size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etc;
2.Main features: X.Y axes adopt two heavy duty roller type linear guideways, Z axis rectangular guideway. Nitrogen balancing system for precise Z axis positioning Preloaded ball screws Taiwan famous high speed spindle unit
High accuracy; High speed; High rigidity; Low noise Product Parameters
Main technical parameters
WORKSHOP
CE CERTIFICATE
PACKING, DELIVERY & FIXING
CUSTOMERS' VISITING & EXHIBITION
