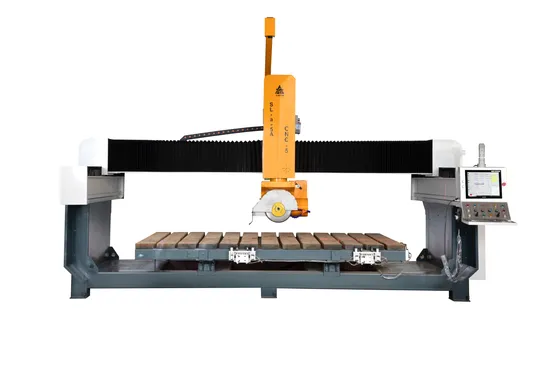

5+1 Axis CNC Bridge Saw, Milling Cutter, Stone Cutting Machine Within Camera

Product Description

5 axis / 5+1 Stone Edge Cutting Machine Granite Bridge SawBridge Cutting Machine(Assemble Line) is easily used in assemble line processing work. Infrared Bridge Cutting Machine (Assemble Line) can improve work efficiency, reduce the labor force and processing cost. Laser stone cutter is suitable for production line users to save time and energy.
STRUCTURE AND FEATURES: It is the improved one with high efficiency and mature technology.It is suitable for assemble processing line to achieve the plate does not fall to the group. It is suitable for mass production for the large size plate, saving the transport time with highly efficiency,reduce the labor force and processing cost. It is suitable for production line users to save the time and energy, it is the most useful cutting equipment in the deep processing of the quartz stone industry. 5 Axis cutter machine Advantages:
1. The machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape
2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting
3. The platform is turned over at 85 degrees to facilitate loading and unloading.
4. The operation is simple and the control system can input data.
5. Equipped with grinding wheel device, it can polish the table face and cutting surface.
6, Our machine can make the whole line from the pick stone to the cutting machine ,and pick out for stocking .

Technical Paramaters:
Processing size	3200*2000mm
Blade Diameter	350mm
Cutting thickness	50mm
Control system	Self developed
Platform flap angle	0-85
Head rotation angle	0-360
Nose tilt angle	0-45
host	22kw
Transmission mode	x/y/a axis gear rotation, z-axis ball screw
Driving mode	Servo / step

PS: All the working area and specifications can be customized according to your requests.

FAQ
1. How to use the machine after receiving the machine
Firstly, when you got machine, you need to contact with us, our engineer will work together with your to deal with it, Secondly, we send user manuals and CD to you before you get the machine. Thirdly, Our professional technician online teach you until you can use it well by yourself.
2. Payment terms, There are 2 ways to pay money.
1)T/T, means international bank transfer. 50% deposit, we produce the machine for you. 50% before shipping. It is convenient and fast.
2)Global Pay payment. Reliable and safe, Made in china will charge a little handling fee.
3)Other kinds of payment we can consider if acceptable for us.
3. How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
4. Do you have a setup and equipment commissioning service?
Yes, we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
5. What is the warranty period for the equipment?
Three years warranty and 24 hours online professional technical support.
