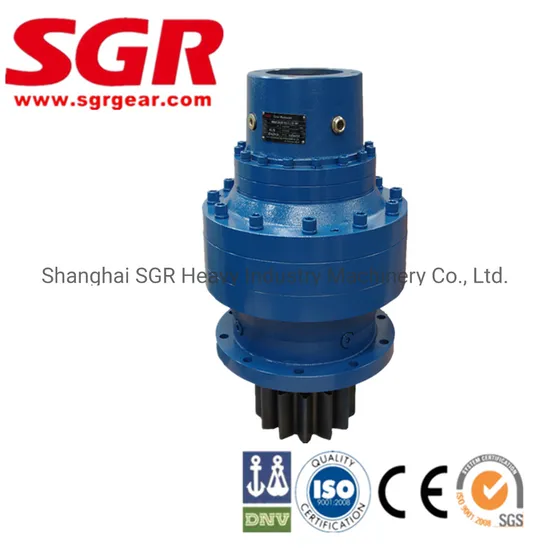

High Output Torque Planetary Gearbox for Slewing Drive / Speed Reducer / Gear Motor

High Output Torque Planetary Gearbox for Slewing Drive / Speed Reducer / Gear Motor

US$2,000.00
1-9 Pieces
US$1,500.00
10+ Pieces

Basic Info.

Model NO.
MN/N
Layout
Coaxial
Hardness
Hardened Tooth Surface
Installation
Flange
Step
Three-Step
Type
Circular Gear
Diameter
up to 885mm
Material
Cast Iron
Manipulate Way
Robotics
Changes Way
Mixed
Manufacturing Method
Cut Gear
Toothed Portion Shape
Spur Gear
Transport Package
Plywooden Case or Steel Cage
Specification
ISO9001: 2008
Trademark
SGR
Origin
China
HS Code
8483409000
Production Capacity
400PCS/Month

Product Description

High Output Torque Planetary Gearbox for Slewing Drive / Speed Reducer / Gear Motor
Description: Planetary gearbox is produced by modular design, and can be combined according to client's request Involuted planetary gear design Nodular cast iron Housing to increase rigidity and antiknock Heavy duty bearing on low‐speed shaft, and can bear big radial load due to proportionate distribution of torque All gears are case hardened to get high surface hardness, which guarantee transmission efficiency and whole gearbox's life Planetary gearbox has 16 models for different torque range, and each model have 1‐5 reduction stages to achieve different ratios Ratio range: 3.15‐9000 Input power: 0.25‐55KW Permit torque rang: ≤ 800000N. M Output speed: 0.425‐445 r/min Structure mode: Possibility of flange, foot, or shaft mounting solutions Wide and comprehensive range of N series for industrial applications Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft Rigid and precise nodular cast iron casing Low noise running, high manufacturing quality standard High and reliable performance, load capacity and low speed shaft bearing
Characteristic of Quality Planetary Gearbox for Slewing Drive/Speed Reducer :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing
Ratio 3.15:1 to 9000:1
Reduction Stages up to 6 reduction stages in one gearbox
Nominal Output Torque up to 800,000N.m

Data Sheet :
Torque range 1000 ... 540000 Nm Input IEC Flange
Mechanical rating (n1 = 1500 min-1) up to 200kW Electric motor
Gear ratios 3.15 ... 5000 Solid input shaft with or without fan cooling - inch or metric dims.
Gear unit versions In line Applicable AC motors Integral motors and brake motors
Right angle (with bevel gear set) IEC-normalized motors and brake motors
Mounting type Foot Single and dual speed motors
Flange mounted Main brake features DC and AC supply
Torque-arm Faster brake reaction through electronically controlled rectifier
Output shaft options Solid shaft Main motor options Thermistors and thermostat sensors
Splined shaft Independent forced cooling
Female splined shaft Line driver and push-pull incremental encoder
Hollow shaft with shrink disc


Our Services With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.

Our Honour and Patent :
ABOUT US:
Shanghai SGR Heavy Industry Machinery Co., Ltd.(formerly known as Shanghai Great Wall Reducer Co., Ltd. ) (sgrgear.en.made-in-china.com) has accumulated rich original designing & manufacturing experience after being founded in 1996. SGR brand planetary gear reducer has won honor of "Science and Technology Advancement Prize" awarded by the National Speed Reducer & Variator Industry Association.
We produce planetary gear units, planar double-enveloping worm gear speed reducers (cone worm gear reducer), helical-bevel gear motors, worm gear reducers, helical worm gear motors, helical gear motors and many other types of gear units. SGR gear motors and gear units have given satisfactory performance in different industrial applications, including metallurgy, mineral, architecture, shipbuilding, petroleum combination, aviation space-flight, lift routeing, textile mechanic, cement, pharmaceuticals, pumps, general mechanic and other domain.
With the advantage of high quality & competitive price, SGR gear motor and gear units are widely welcomed in the domestic market and exported to Southeast Asia, Middle Asia, North America and European countries etc.
With the excellent testing program, SGR company is always keeping up with the most advanced technology in the world. We have already acquired DNV-ISO9001: 2008 certificate,SGS, CE etc and a patent on SGR branded gearbox.
We have adopted advanced CAD and CIMS in design & manufacture, which help our engineers develop 3 - 5 series of new efficient products each year. All staff in sales & service department are well trained termly, thus you will be always warmly welcomed and understood by our company.
