1200/1600/1800mm Conveyor Belts Repairing Machine/Rubber Belt Vulcanizing Press Machinery

Product Description

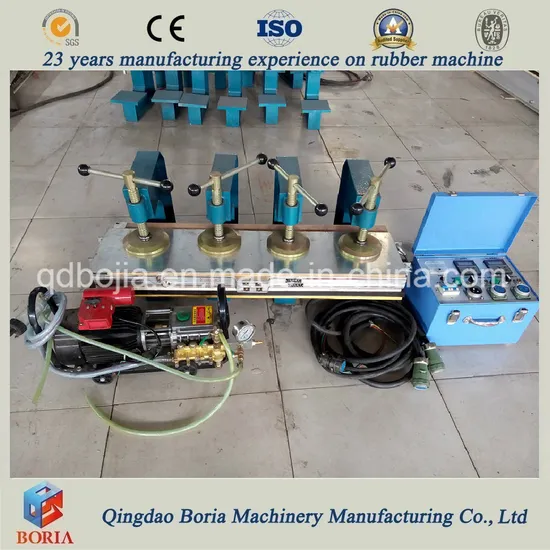

Product Description Conveyor Belts Joint Vulcanizing Press
The pressure water bladders :
1. The weight is very light than the normal ones, it is about a quarter of the normal ones
2. With large amplitude expansion: when pressing, the screws beside on the machine can fixed easily by hand.
3. Uniform pressure, and 70-100mm bigger around the hot plate than the common machines.
4. With big pressure at about 3.0Mpa
5. No leaking: no leaking even in the high pressure and long working time
Heating system with soft mat:Our heating plate is adopt "carpet heating" with soft surface ,uniform heating of conveyor belt and energy conservation.


Our conveyor splicing belt adopts Canadian technology and please finds the advantages as follow.

1. With light-weight and easy to hand and move.
2. Quickly increase temperature, uniform heating.
3. Waterproof: Can be used in damp or water environment, not conduct electricity
Main Parameter:

Model	Width of rubber belt to be joined-up (mm)	Total Power(KW)	Weight of heaviest part (Kg)	Overall dimensions LxWxH(mm)	Total weight (kg)	Control box
ZLJ--1200	1200	16.5	69.3	1680×830×710	900	1
ZLJ--1600	1600	21.1	89.7	2140×830×800	1320	1
ZLJ--1800	1800	23.3	89.7	2300×830×850	1480	1

The main parts of vulcanization joint machine are made of high strength aluminum alloy. It is equipped with automatic explosion-proof electric cabinet and has 0-2Mpa even pressure offered by the pressure system, so it is easily operated, portably carries. It warms up by electric heating element, so it works stably with high thermal efficiency and homogeneous temperature. Now it has been widely used in the joint and patch of vuloanization machine in the field of metallurgy, mining, cerement, electric power, wharf, building materials, chemical industry etc.
