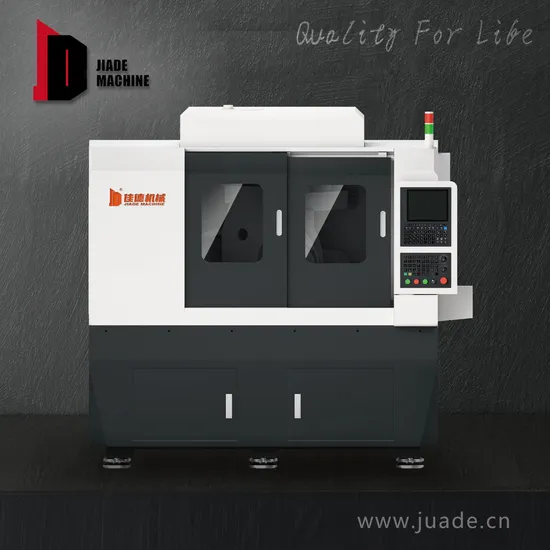

High Precision CNC Automatic Flute Grinder
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
Used
Transport Package
Woodern
Trademark
Jiade
Origin
China
HS Code
8460310000
Production Capacity
500sets/Year
Product Description
Product DescriptionCNC automatic Flute grinding machine can be convenient debugged and simple operated, one worker operate multiple machines, compare to some domestic similar products, it can save about 30% electricity consumption, save 30% grinding wheel consumption, and can improve the output. Equipped with the tool grinding software independently developed by Jiade Machinery, it can automatically correct the grinding wheel and grind the bit groove.
Machine Function
Product Parameters
| Model | MGX4/CNC Flute Grinding Machine Model NO.MGX4 |
| Tool size | 3mm-13mm |
| Machine construction | Single column |
| Axis of motion | X-Axis:140mm |
| Y-Axis:270mm | |
| Z-Axis:60mm | |
| A-Axis:360° | |
| Tool length | 205mm |
| Grind wheel diameter | Inner203mm Outter355mmThickness3-13mm |
| Spindle type | Mechanical spindle |
| Drive system | Pin roller lead screw,direct drive |
| Electrical power | 10KVA/20KVA |
| CNC data | 700 bus CNC.Hiqh-speed SSD MECHATROLINK protocol ,NXP-Rt1176M7 main controller |
| Machine body | High-performance cast iron |
| Machine size | Length:1750mm |
| Width:1725mm | |
| Height:1780mm | |
| Weight:2000kg |
