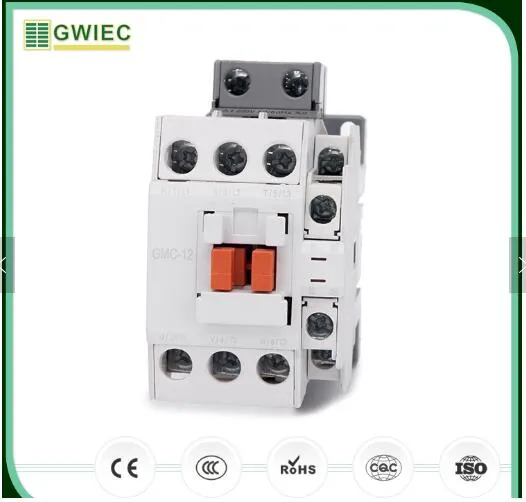

Mc-25b (GMC-22) Mec Magnetic AC Contactors 110VAC 50/60Hz 1A1b DIN Rail Contactores

Mc-25b (GMC-22) Mec Magnetic AC Contactors 110VAC 50/60Hz 1A1b DIN Rail Contactores

US$1.20 1 Piece (MOQ)

Basic Info.

Model NO.
GMC
Phase
1
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
100A
Type
Ac Contactors
Transport Package
Export Standard Packing
Trademark
GWIEC or OEM
Origin
Zhejiang

Product Description

GWIEC China Factory Sales 18A 3P GMC CJX18 AC Types Brands Electrical Contactor Product Description Application:
GMC(CJX5) Series AC contactors are latest products in 1990's. The series of products for frequency of 50/60Hz, rated insulation voltage up to 690-1000V, rated operational current up to 9A-400A at rated operational voltage up to 380V under AC-3 GMC Series AC Contactors are mainly used for making breaking electric circuits at a long distance and for frequent starting stopping and reversing control of AC motors They products comply with IEC947,VDE0660,G814048


Specification:
Type GDMC-9 GDMC-12 GDMC-18 GDMC-22
IEC-60947 AC1 duty 20A 20A 25A 32A
AC3 duty 200-240V 2.5kW 11A 3.5kW 13A 4.5kW 18A 5.5kW 22A
380-440V 4kW 9A 5.5kW 12A 7.5kW 18A 11kW 22A
500-550V 4kW 7A 7.5kW 12A 7.5kW 13A 15kW 22A
690V 4kW 5A 7.5kW 9A 7.5kW 9A 15kW 18A
UL Continuous current (th) 20A 25A 30A 32A
AC Motor single
phase		 115V 0.5HP 0.5HP 1HP 2HP
230V 1HP 2HP 3HP 3HP
Three
phase		 200V 2HP 3HP 5HP 7HP
230V 2HP 3HP 5HP 7.5HP
460V 5HP 7.5HP 10HP 10HP
575V 7.5HP 10HP 15HP 15HP
Aux. contact Side mounting AU-1
Top mounting AU-2, AU-4
Panel installation Rail & screw
External dimension (mm) (WxHxD) 44 x 80 x 86.8
Type GDMC-32 GDMC-40 GDMC-50 GDMC-65
IEC-60947 AC1 duty 50A 60A 80A 100A
AC3 duty 200-240V 7.5kW 32A 11kW 40A 15kW 55A 18.5kW 65A
380-440V 15kW 32A 18.5kW 40A 22kW 50A 30kW 65A
500-550V 18.5kW 28A 22kW 32A 30kW 43A 37kW 60A
690V 18.5kW 21A 22kW 25A 30kW 33A 37kW 47A
UL Continuous current (th) 45A 50A 70A 80A
AC Motor single
phase		 115V 2HP 3HP 3HP 5HP
230V 5HP 5HP 7.5HP 10HP
Three
phase		 200V 7.5HP 10HP 10HP 15HP
230V 10HP 10HP 15HP 20HP
460V 20HP 25HP 30HP 40HP
575V 20HP 25HP 30HP 40HP
Aux. contact Side mounting AU-1
Top mounting AU-2, AU-4
Panel installation Rail & screw
External dimension (mm) (WxHxD) 68 x 82 x 94.6 94 x 123.5 x 117.4
Type GDMC-75 GDMC-85 GDMC-100 GDMC-125
IEC-60947 AC1 duty 110A 135A 150A 150A
AC3 duty 200-240V 22kW 75A 25kW 85A 30kW 105A 37kW 125A
380-440V 37kW 75A 45kW 85A 55kW 105A 60kW 120A
500-550V 45kW 64A 45kW 75A 55kW 85A 60kW 90A
690V 45kW 47A 45kW 52A 55kW 65A 60kW 70A
UL Continuous current (th) 90A 100A 160A 160A
AC Motor single
phase		 115V 5HP 7.5HP 7.5HP 10HP
230V 15HP 15HP 15HP 20HP
Three
phase		 200V 20HP 25HP 30HP 40HP
230V 25HP 30HP 30HP 40HP
460V 50HP 50HP 60HP 75HP
575V 50HP 50HP 60HP 75HP
Aux. contact Side mounting AU-1 AU-100
Top mounting AU-2, AU-4 -
Panel installation Rail & screw Screw
External dimension (mm) (WxHxD) 94 x 123.5 x 117.4 100 x 157.4 x 146.5
