CNC Vertical Machining Center CNC Milling Machine Vmc7032

Product Description

NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.

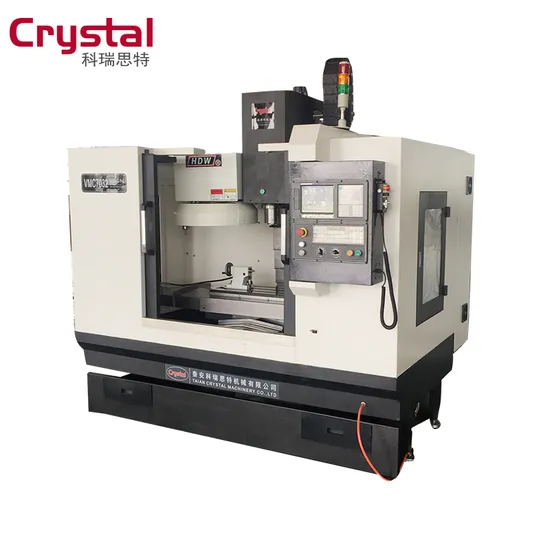

cnc vertical machining center cnc milling machine VMC7032
A. Standard configuration

KND system ( you also can choose Siemens and FANUC control)

Umbrella type tool Magazine, 12 tools

Taiwan BT40 spindle unit

High precision ball screw

Fully-guarded type machine

self-lubrication, coolant system, lighting system


B. Specification

Items	Details	Unit	VMC7132
Table	Size	mm	800×320 (1000×320)
	Travel of 3 axis	mm	610/320/400
	Max, table load	kg	400
T-slot	Size	mm	3-14
	Center distance	mm	100
Spindle	Spindle taper		BT40
	Spindle to guide	mm	376
	Distance of spindle head to table	mm	130-530
	Max speed	rpm	8000
	Motor power	KW	3.7/5.5
	Spindle drive		Belt transmission
Accuracy	Positioning accuracy	mm	0.02
	Repeatability	mm	0.01
Axis motor	Power of X/Y/Z	Kw	1.2/1.6/1.6
Feeding speed	Rapid feed of X/Y/Z	mm/min	1000
	Cutting feed of X/Y/Z	mm/min	6000
Parameters	Air pressure	Kgf/cm²	6
	Weight	Kg	1900
	Dimension	mm	2280*1760*2200
	Power		3 phase 380V,

Make you satisfied is our business!
The First Batch in china suppliers to join the ****** Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
