Basic Info.
Automatic Grade
Automatic
Main Saw Motor Power
16.5kw
Scoring Saw Motor Power
2.2kw
Max. Cutting Length
3300mm
Max. Cutting Thickness
100mm
Max. Cutting Width
3300mm
Precision of Servo Positioning
0.02mm
Diameter of Main Saw Blade
360-400mm
Main Saw Shaft Diameter
80mm
Main Saw Spindle Speed
4800rpm
Saw Carriage Driving Motor
1.8kw
Clamper Driving Motor
1.8kw
Side Alignment Motor
0.55kw
Air Floating Table Blower Motor
4kw
Transport Package
Package
Specification
580*7500*1900

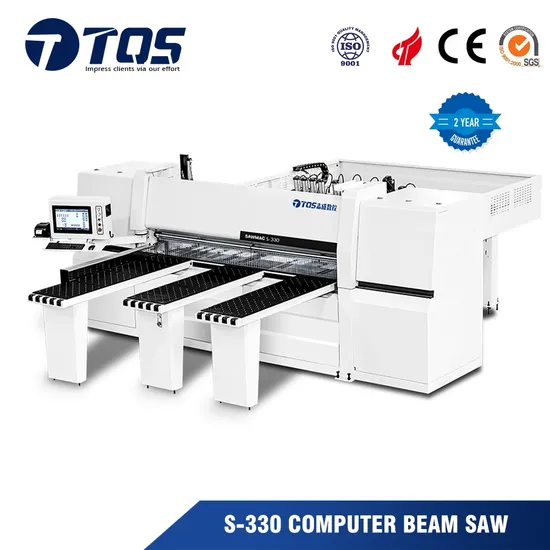

Product Description
Main saw motor power | 16.5KW |
Scoring saw motor power | 2.2KW |
Max. cutting length | 3300mm |
Max. cutting thickness | 100mm |
Max. cutting width | 3300mm |
Positioning type | Automatic |
Precision of servo positioning | 0.02mm |
Cutting precision | ±0.1mm |
Main saw motor power | 90mm & 30m/min |
Diameter of main saw blade | 360-400mm |
Main saw shaft diameter | 80mm |
Main saw spindle speed | 4800rpm |
Saw carriage driving motor | 1.8KW |
Clamper driving motor | 1.8KW |
Side alignment motor | 0.55KW |
Cutting speed | 0-100m/min |
Saw carriage returning speed | 120m/min |
Air floating table blower motor | 4KW |
Air pressure | 0.6-0.8Mpa |
Air floating table size | 1750x540mm |
Motor power | 26.5KW |
Dimension | 5800x7500x1900mm |
Weight | 4900KGS |
Main body frame and structure
Main structure is solid welded, and done the tempering treatment, to ensure the stability of the machine, without the deformation.
Electrical components and PLC
The main electrical components as Schneider brand, PLC as Delta brand with high-capacity storage, can achieve the rapid calculation, with reliable performance
Computer control and interface The machine is controlled by industrial computer, the control panel display interface is simple and easy to understand, the control mode is safe and reliable. Perfectly guided operation and fault alarm troubleshooting prompts, you can edit the desired sawing scheme, and can simulate sawing. Compatible with a variety of optimization software, bar code management software and automation software integration.
Clamping carriage structure
Clamping carriage is driven by high performance servo through rack and pinion, which can realize accurate positioning and ensure sawing precision, thus ensuring efficient and precise sawing.
Air floating table
Adopts air floating table, which can achieve easy in-feeding, and can protect the board surface (especially the melamine and PET laminated board).
With 4.0 KW powerful air blower to ensure the air floating performance.
Saw carriage details
Saw carriage movement along dual-round bar, to ensure the straight cutting line.
Main saw and scoring saw can do individual elevating.
Saw carriage movement is driven by servo motor through rack and pinion.
Clamping device
The board clampers adopts pneumatic structure, the finger with rubber wrapping, which can protect the board surface.
The clamping carriage is driven by the servo motor, can achieve the precise positioning.
Side alignment device
In order to get the precise cutting of small boards, the machine come with side alignment device, which can do the alignment of the narrow boards.
It is driven by AC motor through chain.
Servo motor driving through rack and pinion as option.
AC servo with absolute encoder Precision:do the circle control of positioning, speed and torque. Speed: high speed performance is good Adaptability: resistance to overload ability is strong, can bear the load of three times of rated torque, with instantaneous load fluctuations and rapid start required. Stability: stable operation at low speed, it is suitable for occasions with requirement for high speed response. timeliness: motor deceleration dynamic response time is short, generally within a few milliseconds.
INOVANCE inverter High-end intelligent vector inverter, built - in rich motor control mode Can do about 5,000 PLC functions Flexibility to meet different application requirements
YINCHUANG dust-proof linear guide way
Dust-proof design, lengthened running guide way, processing plate length is unlimited, one time positioning to reduce clamper shifting time.
AIRTEC pneumatic cylinder
Compact structure, effectively save installation space, cylinder inner has been done the rolling treatment and hard oxidation treatment, wear-resisting, durability is good.
Automatic lubrication pump
Good lubrication effect, cylinder type oiling system, all linear guide ways with the individual cylinder oil supply, ensure that all linear guide ways are evenly lubricated.
