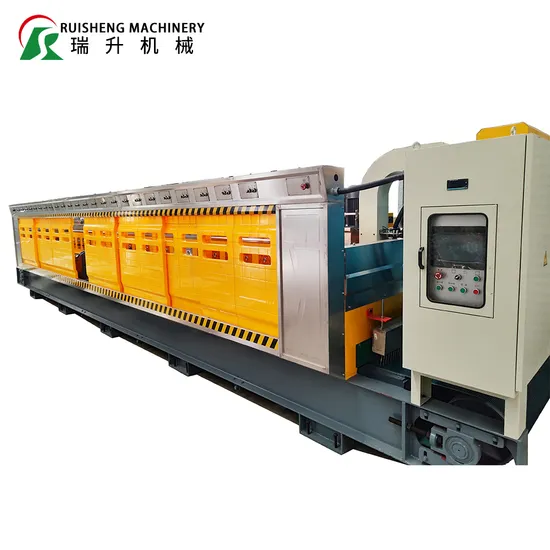

Efficient Automatic Granite and Marble Slabs Polishing Line Machine
| US$46,200.00-92,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RS-25C
Type
Stone Polishing Machine
Control
PLC
Automation
Automatic
Precision
High Precision
Application
Granite
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Barrel Polishing Machine
Grinding Method
Wet Grind
Certification
ISO, CE
Condition
New
Polishing Heads Qty
25 Heads
Useful Working Width
300-1200mm
Useful Working Thickness
10-60mm
Max. Belt Advancement Speed
0-2500mm/Min
Spindle Motor Power
7.5kw
Gross Power
210.75kw
Water Consumption
27m³/H
Transport Package
Plastic Film Packing
Specification
1035cm*230cm*230cm
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
50pieces/Month
Packaging & Delivery
Package Size
1280.00cm * 230.00cm * 250.00cm
Package Gross Weight
15000.000kg
Product Description
Product DescriptionGranite Lath surface polishing special, using resin grinding plate special elastic grinding head, polishing more comprehensive, higher efficiency, lower abrasive wear; Using the most advanced and high-quality construction, rational structure, high stability and efficiency, and energy saving operation;
Using PIC System and liquid crystal display screen menu, offering intelligent control;
Easy to operate, the stroke pressure when main spindle lifts and falls, the beam travel, speed and the belt moving speed can be adjusted
according to the stone materials and the requiring finishing gloss;
Auto-dodging function and shape-memory function, equipped with an advice to prevent the grinding head from mistakenly hitting the belt,
higher automation operation and lower labor the strength;
Using central automatic lubrication system, so that all moving parts and bearings can get a good lubricating effect, and longer life;
The power movement of polishing heads uses the narrow V bell with teeth set, to improved slabs flatness, reduced movement consumption and enhances the longer service life.
| Product name | Unit | ZDMJ-16C | ZDMJ-20C | ZDMJ-25C |
| Useful working width | mm | 300-1200 | 300-1200 | 300-1200 |
| Usetul working thickness | mm | 10-60 | 10-60 | 10-60 |
| Belt advanced speed | 3 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 |
| (Number of grinding head(optional) | pcs | 16 | 20 | 25 |
| /Power of polishing head | Kw | 7.5 | 7.5 | 7.5 |
| Gross power | Kw | 125 | 155 | 201.75 |
| Water consumption | me/n | 15 | 18 | 27 |
| (Overall dimensions(LxWxH) | m | 7.8X2.3X2.5 | 9.2X2.3X2.5 | 12.8X2.3X2.5 |
