Taijia Compressive strength test on concrete TEM-912 Digital Schmidt Concrete test hammer concrete compression testing machine

Product Description

Product Description

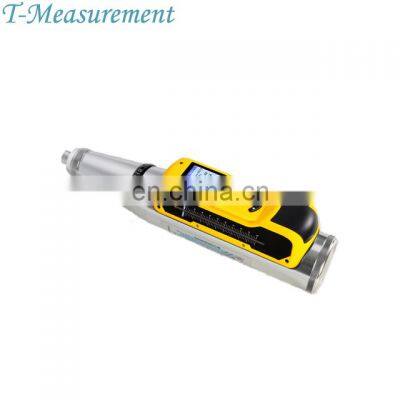

Product DescriptionTEM-912 Digital Concrete test hammer / Schmidt hammerTEM912 digital rebound tester, digital part adopts modular design and non-contact grating optocoupler sensor collection, with automatic recording, automatic storage, automatic calculation, automatic data processing; and voice broadcast; later data analysis and processing, according to the specifications automatically Data analysis, test report. It improves the work efficiency of rebound testing, reduces the labor intensity of testing personnel, embodies the scientificity, advancedness, fairness and accuracy of rebound testing, and leads non-destructive testing to a new stage of digitization and intelligence.schelometer schemdit hammer for concrete test schmidt hammer manual concrete test hammer schmidt rebound hammer rebound hammer testerSpecification Standard impact energy 2.207J Rigidity of tension spring 785.0±40.0(N/m) Pointer length: 20.0±0.2(mm) Pointer friction 0.65±0.15(N) Working length of bounce tension spring 61.5.0±0.3(mm) Spherical radius of the end of the bounce rod 25±1.0(mm) Impact Hammer Impact Length 75±0.3 Anvil rate setting 80±2(Our factory products are controlled between 80-81 Error range for digital displayer <=+-1(the difference between displayer and scale) Display 2.0inch （220×176 pixels ） Output Mode Cable (Update version have WIFI, Bluetooth) Storage Capacity 2000 pcs, 640 thousand data Turn off Automatic turn off without operation Power supply 3.7V Lithium battery, 1050 mA Port USB (update type Bluetooth and WIFI. ) Collection Mode Automatic display and record data Size(mm） 150×62×39 Weight（kg） 0.1kg（include battery） Color Yellow Rebound Hammer type Digital concrete test hammerRelated productsPacking & DeliveryPackage for concrete test hammer TEM-912 rebound hammer are carrying bag, And outter package will be carton box.Testing VideoCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you. DALIAN TAIJIA TECHNOLOGY CO.,LTD 1. Experienced company --15 years experience in supplying ultrasonic measurement equipment.2. MOQ: 1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 18 Month's Warranty on all product5.For more information please contact us by mail ndt at Or by Skype:tmeasurement04Or by Mob & Whatsapp:+86 15998577470Or by Phone: 86-159985774706. Service express company:TNT/DHL/FedEX.
