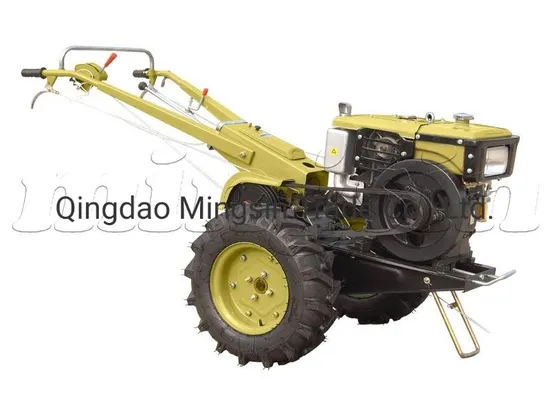

Hand Tractor (MX-111) , Two Wheel Tractor, 12HP Power Tiller

Product Description

Products:
MX-111 walking tractor / power tiller / Two-wheel tractor is the heavy type based on the design of MX-101. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination.
It can be used for plough rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationery power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Parameters:

Model		Unit	MX-111
Structure weight	Without rotavator	kg	270
	With rotavator		326
Working weight (with rotavator)		kg	365
Overall dimensions (LxWxH)		mm	2170x846 x 1150
Number of blades		PCS	17
Rototilling width		mm	900
Type of tractor			Single axle, dual-purpose for both traction & drive
Travelling speed	Forword	Km/h	1.98, 3.08, 4.98, 8.04, 12.49, 20.2
	Reverse		1.53, 6.18
Type size			6.00-12
Wheel track		mm	680~740(adjustable)
Min. ground clearance		mm	210
Min. turning radius		m	0.71 (without rotavator)
Model of engine			195N
Type of engine			Horizontal 4-stroke
Bore x stroke		mm	95×100
Total displacement		L	0.709
Compression ratio			21:01
Turing speed of crankshaft		rpm	2200
12-hour rated output		KW/hp	8.10/11
Injection pressure Mpa		Kgf/cm2	12.7 + 0.5(130 + 5)
Advance angle of fuel injection			16 + 2
Cooling mode			Condenser (Radiator) or Hopper
Main farm implements (optional)			Anti-skid steel wheel Model 100-640 Single-furrow plough Model 1LS-125 Turnover plough Rotary tiller Model MX90D-1 Sprinkler Model 50BPZ-45 Swather/reaper Model 4GL-100 Trailer 7C-0.8 (Standard)

Our Services:
Department Introduction of QC / Technical Support:
In order to get super quality, we have special QC department to control the product quality. This department is composed by experienced engineers who can offer us strong technical support easily. The engineers will inspect product quality both in order production and after order production to make sure each shipment we send to our customers is in the best status. With their strict quality control, our consistent quality wins us more and more orders from our international customers.
QC Flow:
1.Material inspection before production to avoid any potential problem from the very beginning.
2. Inspection for half-finished products during order production to find the problem earlier if any;
3. Inspection for finished products after production to make sure the products comply with customer's requirement.
Full Service and Product Warranty:
We offer our customers technical assistance and a full one year warranty on all products covering all manufacturing defects. ME Our manufacturing facilty is completely computerized to provide our customers efficiency, reliability, high quality and timely shipments. Spare Parts:We can supply spare parts within 15 business days or sooner. Currently, part numbers are not available on-line. You may however determine the part number from your Parts Book or, if it is a simple part, you may describe the part and send us an order online. If you are not sure,
please Contact Us . Shipment: We can ship from our port in Qingdao or Shanghai, China to anywhere in the world within short days.
