Automatic Watermelon Seeds Extraction Machine Watermelon Pumpkin Seed Extractor Machine

Automatic Watermelon Seeds Extraction Machine Watermelon Pumpkin Seed Extractor Machine

US$2,400.00
1-4 set
US$2,200.00
5+ set

Basic Info.

Model NO.
DM-DG500
Application
Pumpkin, Watermelon
Power Source
Electric/Diesel
Harvest method
Picking
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Color
Silver
Condition
New
Application Field
Agriculture
Warranty
Technical Support & Free Accessories
Keywords
Seeds Extraction
Function
Agricultrual Equipment
Usage
Agriculture machinery Farm Equipments
Processing Material
Seeds
Feature
High Efficiency Low Cost
Product Name
Pumpkin Seed Extraction Machine
Transport Package
Standard Export Wooden Case
Specification
Machine Weight: 550kg
Trademark
Domax
Origin
Henan, China
Production Capacity
60 Pieces/Month

Packaging & Delivery

Package Size
215.00cm * 130.00cm * 138.00cm
Package Gross Weight
590.000kg

Product Description

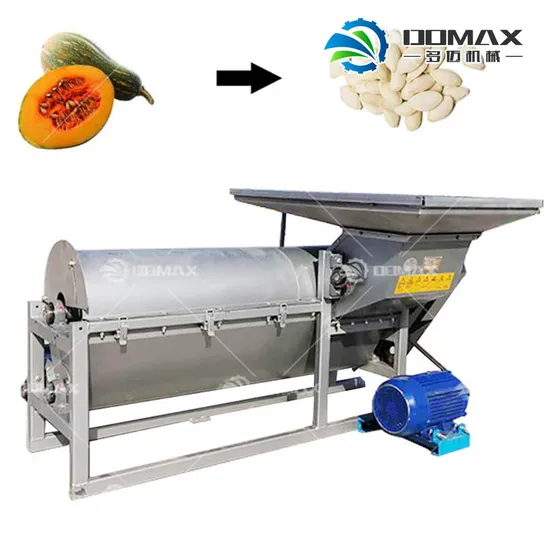

Automatic Watermelon Seeds Extraction Machine Watermelon Pumpkin Seed Extractor Machine
Product Description
Introduction of the Pumpkin Seeds Extraction Machine The machine is connected with a small tractor through handing body. Tractor powered by propeller shaft passed to the stirring axle of the machine, through the sprocket and chain under the action of the power chain, assigned to separate consecutive axes, broken shaft, cleaning wheel shafts, the machine works.

Product Parameters
Model:
DM-DG500
Capacity
500kg/h
Size
2050*1200*1280mm
Weight
550kg
Driving type
Tractor/18hp diesel engine /7.5kw motor

Advantages of the pumpkin seed extractor 1. The power input of the machine adopts the wheel tractor power output shaft mode, which has strong power flexibility;
2. The frame of the machine is made of high-quality steel, which has the characteristics of reasonable structure, strong and durable;
3. Crushing, separation and cleaning devices are stamped and welded by special molds to ensure reliable performance;
4. The machine adopts a unique suspension mode and spiral barrel, which is easy to remove melons, weeds and other plants, which can save time and improve work efficiency.
Product Application
Applicaton of the Pumpkin Seeds Extraction Machine This machine is specially used to extract the seeds from the ripe pumpkin. It can crush the pumpkin, press and separate the seeds from the pumpkin skin and flesh , cleaning the seeds.This machine is mainly used for collecting and removing seeds of melons. Users order, choose different specifications of cleaning screen, can be suitable for different sizes of melon seeds particles collection. Working principle of the pumpkin seed extractor 1.The worker put the pumpkin into the hopper of the machine; 2.The crushed pumpkin will be transported to the separating drum; 3.The separating shaft will mix, then the pumpkin skin and most of part of the pumpkin flesh will get out of the separating drum, the pumpkin seeds and liquid will get into the mixing box; 4.Because of the moving of the stirring shaft, the pumpkin seeds and the small part pumpkin flesh will get into the cleaning barrel; 5.Because of the moving of the cleaning shaft, the pumpkin and the pumpkin seeds will be separated and cleaned well. The pumpkin seeds will be get out under the pressing of the cleaning shaft.
Machine Picture Display
Packaging & Shipping
Customer Feedback
Why Choose US
