Green air flow coconut shell charcoal making machine price
Product Description

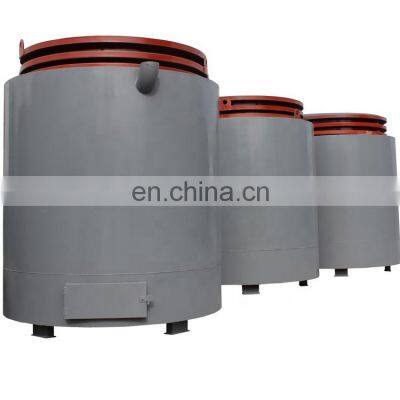

Introduction of Air flow coconut shell charcoal making machine:
Air flow coconut shell charcoal making machine includes one outer stove, three inner stoves, three covers, one hoist frame and a purification system. This new design not only can improve the efficiency, but also can reduce the population. With the development of the society, green development gradually become our goals and objectives, people realize the importance of environmental protection. More and more people choose carbonization stove to produce the charcoal.
The whole process of Air flow coconut shell charcoal making machine:
Prepared work:
Keep one inner stove down, then put the raw materials into the inner stove, use the hoist frame
to hoist the inner stove(with raw material) into the outer stove, and cover it, then seal it well.
Heating process: use wood wastes or gas as the fuel to heat the stove, after 80-120 minutes,
stop heating when the temperature reach 280-330 °C.
Carbonized process:
Then change the fire into low heat, carbonize for 8-10 hours, during the time, it may produce
a little smoke, gas and wood tar, please do not worry about that,we have purification system
to deal with it, and the redundant smoke can be reused as fuel to heat the stove again,
which can recycle the smoke.
Cooling process:
After that, hoist the finished inner stove out, let it cool naturally. Cooling time is longer,
the quality of charcoal is better. When the temperature is lower than 50°C , you can take
charcoal out. At the same time, put another inner stove in the outer stove to heat.
Working principle of Air flow coconut shell charcoal making machine:
Carbonizing is also know as dry distillation, which turns solid fuel into charcoal in a thermal
chemical process. In this process, solid fuel, such as wood and coal are decomposed into
gas(coal gas), liquid(tar oil), and solidity(charcoal/coke). The final tar oil and gas are overflow
from the charring stove(can recycle) and charcoal should remove out of the stove by manual labor.
Advantages of Air flow coconut shell charcoal making machine:
1. High capacity: the carbonized process is short and continuously.
2. High automation: can save 80% labor
3. Environmental: can reuse the redundant smoke
4. Can move according to clients' request
Available raw materials of Air flow coconut shell charcoal making machine:
Biomass materials such as wood branch, rice husk, wheat straw, coconut shell, olive, palm kernel shells can be carbonized after briquette, or you can carbonize them first, then press them into bars.The diameter of the material should be less than 5cm in a inner stove,so that they can be carbonized evenly. At the same time, make sure the humidity should be less than 50%.
Data of Air flow coconut shell charcoal making machine:
Model
Power
Capacity
Weight
Main structure
THL-1
0.75kw
2-3t/24h
4t
1*outer furnace, 3*Inner pots,3*covers,1*purification tank, 1*3t lifting device
THL-2
0.75kw
5-6t/24h
8t
2*outer furnaces, 6*Inner pots, 6*covers,2*purification tank, 1*5t hoist equipment with e-motor
THL-3
0.75+1.5kw
7.5-9t/24h
12t
3*outer furnaces, 9*Inner pots, 9*covers,3*purification tank, 1*5t hoist equipment with e-motor
THL-4
0.75+1.5kw
10-12t/24h
16t
4*outer furnaces, 12*Inner pots, 12*covers,4*purification tank, 1*5t hoist equipment with e-motor
THL-1 Air flow coconut shell charcoal making machine drawing
THL-2 Air flow coconut shell charcoal making machine drawing
THL-3 Air flow coconut shell charcoal making machine drawing and THL-5 Air flow coconut shell charcoal making machine:
The difference between our machine and other suppliers:
1. Materials
Our machine advantage:
♦ Material of furnace: Mn High temperature resistant plate.
♦ Thickness of Inner pot bottom: 10mm (other suppliers are 6mm or 8mm)
♦ Thickness of Inner pot wall: 6mm (others is 5mm)
♦ Thickness of outer furnace bottom: 12mm
♦ Thickness of outer furnace wall: 6mm
2.Brick: Refractory bricks: ours is good quality white ricks, others is red or yellow bricks.
Our machine uses good quality refractory brick to build (high temperature resistance).
Others use cheapest red brick. Please check attached photos.
3.The structure is also different.
We tested our charcoal retort many times. Improve the technology especially smoke treatment.
Our structure is most reasonable. Other can not produce the same machine as ours.
4.Valve (for control the smoke and gas)
Our valve is different with others. If you have rich experience in machinery, you can know that clearly.
Final briquette charcoal of Air flow coconut shell charcoal making machine:
Many customers have visited our company:
Packaging & Shipping
Pickage and shipping of Air flow coconut shell charcoal making machine:
Air flow coconut shell charcoal making machine is large, so it can not be packaged by the wooden case. Therefore, we usually package it by plastic film or straw rope.
The three inner stoves can be stacked in the outer stove together,save a lot of space, thus reduce the freight cost. In addition, we will load the stove by shipping containerdirectly.
The smallest stove is 4tons, size is:1.85 x1.85x2.17m, one 20'GP container can load 1set,one 40'GP container can load 2-3sets, 40'HC can load 4-5sets.
Our Services
Service of Air flow coconut shell charcoal making machine:
Pre services:
1. We will introduce the most suitable machine to clients.
2. Answer clients’questions patiently until clients thought they have solve their problems.
3. Pick clients up to our factory to look over the machine and we will improve our machine according
to clients’ requirements.
After services:
1. Communicate with clients about details of the machine.
2. Choose the most convenient port to clients to delivery the machine.
3. Company can send technical data for guiding to install debug the
machine. We also can provide 24-hour telephone or message service until solve problems
during the making and transporting process in time.
Company Information
Company Introduction of Air flow coconut shell charcoal making machine:
Our company are professional in making cabonization furnace. We have airflow and natural carbonization furnace which can attach different clients’ different needs. We are a productive entity enterprise. We have improved it according to market trendy gradually. We have a strong technical team to develop new products constantly. Except that we also have pellet machine, briquette machine, crusher, dryer and plastering machine etc. Welcome to our factory!
FAQ
FAQ of Air flow coconut shell charcoal making machine:
♦ How to operate this carbonizing furnace?
--- We put materials into the inner stove directly, then put the inner pot into outer stove by hoisting frame,
after carbonizing 8-10hours, hang out the inner stove, let it cool naturally. At the same time, we put
another inner stove inside, continue to carbonized the rest boimass materials.
♦ Does your machine has environmental pollution?
--- No pollution and no smoke.
♦ Why No Pollution and No Smoke?
--- At the beginning of carbonization, the smoke return to the water box
--- After carbonize about 40mins, it will produce the gas, the gas will
return to outer stove, which can be reused as fuel to heat the stove again, which can recycle the smoke.
--- Also there is special pipe for dealing with tar oil.
If you are intersted in our machine, please contact us!
