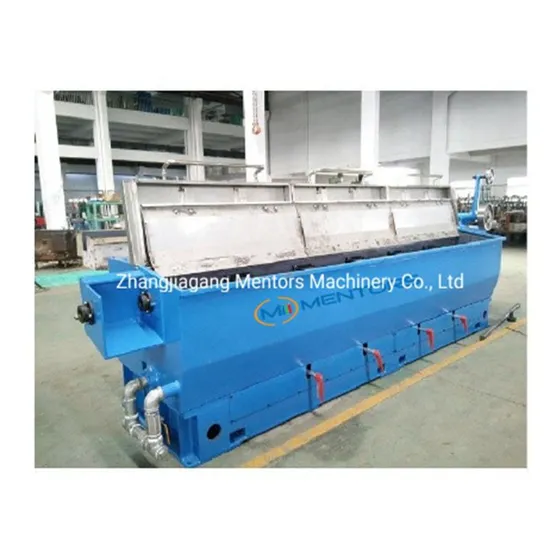

High Quality 9 Dies Copper Rod Drawing Copper Rod Breakdown Machine

Product Description

Application
This machine is used for drawing and annealing brass wire from 6.5 mm to 2.5-3.0 mm.
Outlet wire can be collected by single take up device or coiler.

Feature
(1). Ironed cast(2). Special gear ratio which is suitable for brass wire(3). Brass wire type: H63,H65,H68,H60 etc (4). Shaving dies system before drawing
Main Specification

No	Item	Data
1	Machine Type	SY-LHT400/9
2	Max.Die No	9
3	Inlet wire dia	Φ6.5mm
4	Outlet wire dia	Φ2.6-Φ3.0mm
5	Max.Speed	500m/min
6	Capstan dia	400mm
7	Main motor	132kw (AC)
8	Take up motor	15/18.5kw
9	Annealing part (optional)	Horizontal type
10	Max.annealing voltage	85V(AC)
11	Max.annealing current	3500A(AC)
12	Take-up type (optional)	1-Coiler 2-Single bobbin take-up

Machine Characteristic
(1) Horizontal structure with shaving die system can ensure the good surface(2) The capstan is coated with tungsten carbide power, which can keep long life(3) High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.(4) AC annealing has longer length for annealing. Especially good for brass wire.(5) Driving by AC motor, the imported PLC and touch screen (SIMENS or other famous brand), which is convenient for the operator to set and display the parameter on the touch screen.
Company Profile
Mentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.
Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.
Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.


FAQ
Q1: What's the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: The engineer will be dispatched as needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage.
Q4: Can you support a complete project instead of a single machine?
A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
