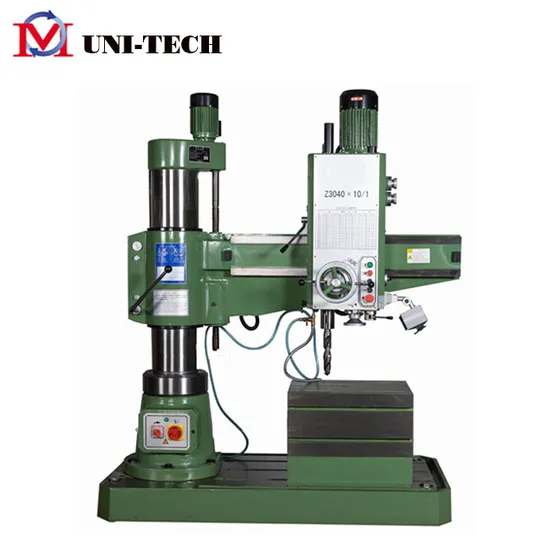

China Industrial Hydraulic Radial Drilling Machine (Z3040X10-1)
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X10-1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model
Z3040X10-1
Color
Green
Size
200*800*2400mm
Weight
2200kgs
Max Drilling Dia(Steel/Iron)
35/40mm
Spindle Taper
Mt4
Distance Between Spindle to Column
350/1300mm
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets
Product Description
Product DescriptionChina Industrial Hydraulic Radial Drilling Machine(Z3040X10-1)
Main Features:
Inner-outer column.
Mechnical clamping for the column and Hydraulic Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center. Product Parameters
SPECIFICATION:
| Model | Z3032/40×10/1 | Z3050X12/1 |
| Max.Drilling capacity (mm) | 32/40 | 50 |
| Distance spindle axis to column generating line (mm) | 300-1000 | 320-1250 |
| Diameter of column (mm) | 240 | 350 |
| Spindle taper | MT4 | MT5 |
| Spindle travel (mm) | 280 | 315 |
| Spindle speeds range (r/min) | 32-2500 | 25--2000 |
| Spindle speeds series | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.1--1.25 | 0.04--3.2 |
| Mpindle Spindle feeds | 8 | 16 |
| Max.Distance spindle nose to working surface of base (mm) | 320--900 | 350-1220 |
| Dimension of worktable (mm) | 600X450X450 | 630X500X500 |
| Dimension of base (mm) | 1710X800X160 | 2050X1000X200 |
| Overall Size (mm) | 1760X800X2050 | 2150X1060X2650 |
| Power of Main motor (kW) | 2.2 | 4 |
| G.W/N.W (kg) | 1920/1830 | 3250/3000 |
| Packing dimension (cm) | 187X97X220 | 240X112X252 |
Standard Accessories
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts
Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun Detailed Photos
