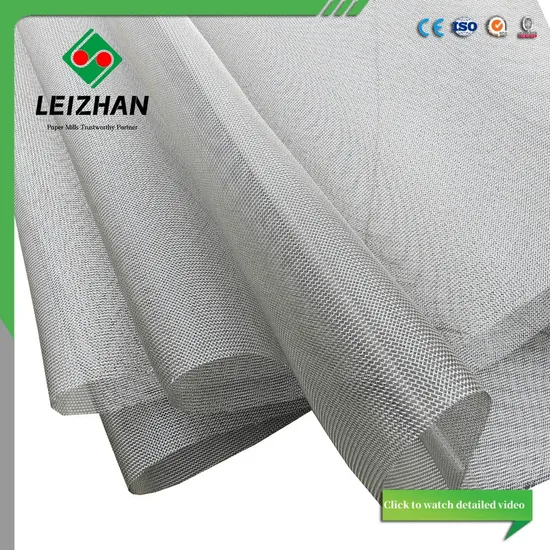

Cylinder Mould Plain Weave Ss Wire Mesh/Net

Product Description

Product Description
1)304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.2)304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.3)316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.4)316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.
Feature of SS wire mesh

Material : Nylon / Polyester / SS 304 ,SS304l,SS316,SS316L

Seam type:Open type ,Endless type

Mesh Count:1-100mesh

Weaving method: plain woven

Weld type:Diagonal welded/Spiral welding (butt welding)

Performance: acid resistance,abrasion resistance, alkali resistance, non-toxic, high temperature resistance (operable for a long time in an environment of 180 degrees),while the mesh body is flat, strong tensile strength, good air permeability, stable operation, no seam marks, The best advantages such as wide adaptability to the diameter of the guide net and long service life.

Detailed Photos
Weld Type of SS wire mesh
Product Parameters

Stainless Steel Wire Mesh
Mesh			Density ( root / cm )		Warp wire diameter	Weft wire diameter
Mesh / inch	Mesh / cm	Mesh / cm2	Warp	Weft
6	2.4	6	2.4	2.4	0.90	0.90
8	3.2	8	3.2	3.2	0.61	0.61
10	4.0	10	4.0	4.0	0.61	0.61
12	4.8	12	4.8	4.8	0.56	0.56
16	6.4	16	6.4	6.4	0.46	0.46
20	8.0	20	8.0	8.0	0.42	0.42
25	10	25	10	10	0.35	0.35
30	12	110	12	9.5	0.30	0.32
35	14	150	14	10.5	0.27	0.30
40	16	190	16	12	0.27	0.30
45	18	250	18	14	0.25	0.28
50	20	300	20	15	0.25	0.28
55	22	330	22	15	0.25	0.28
60	24	372	24	15.5	0.25	0.28
65	26	430	26	16.5	0.23	0.25
70	28	460	28	16.5	0.22	0.24
80	32	590	32	18.5	0.19	0.21
90	36	850	36	23.5	0.15	0.18
100	40	1020	40	25.6	0.13	0.15
