Metal-Forming CNC Machine Tools 0.01~0.02 (mm) Milling Vertical Machining Center with Factory Price

Metal-Forming CNC Machine Tools 0.01~0.02 (mm) Milling Vertical Machining Center with Factory Price

US$2,800,000.00-3,150,000.00 1 Piece (MOQ)

Basic Info.

Movement Method
Contour Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Container
Trademark
nantong
Origin
Nantong
Production Capacity
300 Sets/Year

Product Description


Machine Parameters
Model Unit SKX2016 SKX2500 SKX3020 SKX4025
Travel
X axis mm 2,200 2,700 3,200 4,200
Y axis mm 1,600 / 2,000/2500/3000
Z axis mm 800(1,000-opt.)
Distance from spindle nose to table mm 150 - 950(150 / 1,150-opt.)
Distance between two column mm 1,700 / 2,100/2600
Working table
Table Length mm 2,000 2,500 3,000 4,000
Table Width mm 1,600 / 2,000
Table Load kg 6,000 7,000 9,000 10,000
T- Slot (Width x Number x Pitch) mm 22x7x180 / 22x9x180
Spindle
Spindle Taper - BT-50 / ISO-50 / CAT-50
Spindle Speed rpm 3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated) kw 18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z) m/min 12 / 12 / 15 10 / 12 / 15
Cutting feedrate mm/min 7,000
Accuracy
Positioning Accuracy mm ±0.005 / 300 ; ±0.015 / Full travel
mm P0.03 P0.035
Repeatability mm ±0.003
mm 0.025 0.028
ATC
Tool magazine capacity pcs 32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty) mm Ø125/245
Max. tool length mm 350
Max. tool weight kg 20
Others
Power required kva 65
Pneumatic input pressure kg/cm2 6.5
Machine net weight tons 20 / 22 22 / 24 24 / 26 28 / 30
Floor space (LxWxH) m 8.5x5.1(5.5)x4.7 10.5x5.1(5.5)x4.7 12.5x5.1(5.5)x4.7 15.2x5.1(5.5)x4.7

Machine Configuration
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
Sub-table
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Transformer
Oil skimmer
Oil mist collector


factory show
Packing & Delivery
Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.

Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
FAQ
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production. when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. i will send the machine to you. 2. How about your service after sales ? can your engineer speak fluent english ? we offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time. 3.Are you a factory or trading company? We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory 4. How long is the delivery time? For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 5. How about the documents after shipment? Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client. 6.How to master the stability of machine castings? The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained.
Welcome your inquiry!

>> Efficient Animal Feed Mixer Machine for Corn Wheat Soybean Blend
>> Looking for Bulgaria Agency or Partner Agent for Topstar Injection Moulding Machine and Peripheral Equipment
>> GB/T 8815 Lab Congo Red Thermal Stability Tester up to 250
>> Super Ceramic Ceramic Tile Garden Tile Wood Floor Porcelain Tiles
>> Middle Size Charcoal Grill with Removable Side Table and Under Shelf
>> 7 Liter Lightweight Recycled Polyester Water Resistant Casual Sling Bag for Travelling and Hiking
>> MP5K A1 Plastic Pistol De Gel Gun Children′s Electric Toy Gun Water Bomb Water Gun Toy Gel Ball Blaster
>> Availability Spot Think-System All-Flash Array De6400f 367tb 24 Nvme Ssds
>> Floor Door Mat Artificial Grass Back PVC TPR TPE Carpet Coating Backing Making Machine
>> HDPE PE Microduct Silicon Cored Pipe Extrusion Machine with Single Screw Extruder
>> Embroidery Machine Cap*T-Shirt*Computerized Single Head 9 Needles Embroidery
>> Hot Sale Down The Hole Drilling Machine Soil Drilling Machine
>> Advanced 3000W Laser Hardening Machine for Precision Surface Treatment
>> Wb6414L Heavy Duty Wheel Barrow Galvanized Carretilla Wheelbarrow for Garden Construction with 4.00-8 Inch Pneumatic Wheel
>> Treadmill Machine Home Cardio Machines Free Assembly Motorized Treadmill
>> Wiiboox 3D Printer Auto Leveling Multi-Functional Rapid Prototyping Mache Desktop 3D Printer
>> Hot sale single pole collapsible Stainless steel clothes drying rack clothing store wall rack

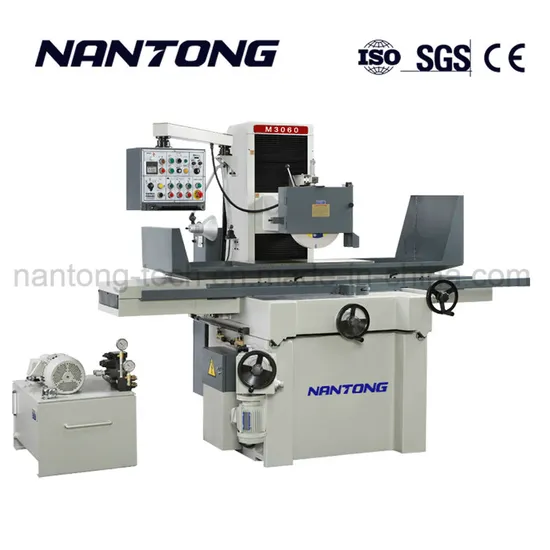

>> High Precision Automatic Surface Grinding Machine
