Hot Sale Down The Hole Drilling Machine Soil Drilling Machine
| US$1,227.00-3,787.00 | 1 set (MOQ) |
Basic Info.
Model NO.
YG70, YG100, YG130, YG150
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
Artificial
Number of Shaft
5
Hole Diameter
60-130mm
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001, SGS
Condition
New
Product Name
DTH Drilling Rig Machine
Air Consumption
0.5-0.7MPa
Air Cylinder Diameter
90mm 140mm
Motor Power
3kw
Voltage
380V
Drilling Rod Length
1025mm
Dimension
1740*260*420mm
Rock Layer Hardness
>20
Rated Rotation
1440r/Min
Main Application
Blasthole
Transport Package
Fumigation Free Woodend Case Package
Specification
Weight: 320kg 470kg 480kg
Trademark
YUGONG
Origin
China
HS Code
8430390000
Production Capacity
750sets/Month
Product Description

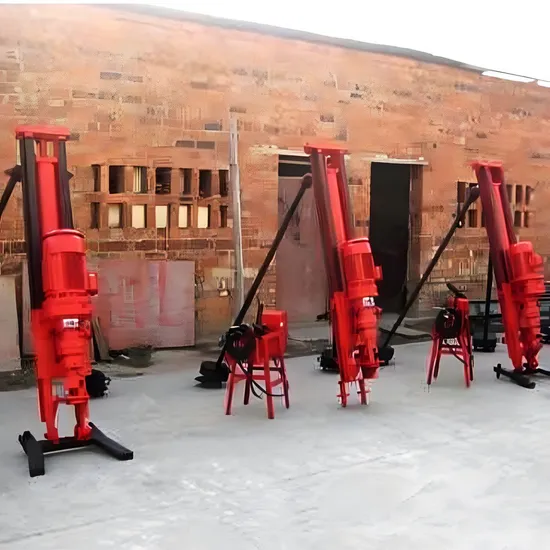

Down The Hole Drilling RigYugong Brand DTH Drilling Rig Machine is applicable to small and medium-sized mines and road construction,
defense and water conservancy and stone works in the large diameter borehole drilling operations. Portable Drilling
Rig is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where
other drilling vehicles do not work properly.
Applications
Applicable to small and medium-sized mines and road construction, defense and water conservancy and stone works in the large diameter borehole drilling operations.
It is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.
Parameters
| Model | YGD70 YGD80 | YGD100 | YGQ100 | YGB100-4 YGB120-5.5 |
| Drilling Diameter (mm) | 50-90 90-120 | 90-130 | 90-130 | 90-130 |
| Apply Rock | ≥20 | ≥20 | ≥20 | ≥20 |
| Drilling Depth (m) | 15 | ≥25 | ≥25 | ≥30-40 |
| Drilling Rotate Speed (r/min) | 110 | 110 | 110 | 110 |
| Working Air Pressure (Mpa) | 0.5-0.7 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
| Air Consumption (m3/min) | 4 | 6 | 12 | 10 |
| Cylinder Diameter (mm) | 90 | 140 | 140 | 140 |
| Propulsion Stroke (mm) | 1070 | 1070 | 1070 | 1070 |
| Max Propelled Force (N) | 3600 8000 | 9600 | 9600 | 9600 |
| Electric Motor Power (KW) | 3 4 | 4 | - | 4 5.5 |
| Electric Motor Voltage (V) | 380 | 380 | - | 380 |
| Rated Speed (r/min) | 1440 | 1440 | 3200 | 1440 |
| Drilling Rod OD (mm) | 42 | 50-60 | 50-60 | 60 |
| Drilling Rod Length (mm) | 1025 | 1025 | 1025 | 1025 |
| Dimension (mm) | 1740*260*420 | 2280*440*550 | 2230*380*550 | 2230*380*550 |
| Weight (kg) | 280 320 | 470 | 450 | 460 480 |
More Details
