China Manufacturer FRP GRP Tank Filament Winding Machine for FRP GRP Tanks

China Manufacturer FRP GRP Tank Filament Winding Machine for FRP GRP Tanks

US$50,000.00
1-4 Sets
US$5,000.00
5+ Sets

Basic Info.

Model NO.
DN600-25000
Condition
New
Customized
Customized
Certification
ISO9001, QS, GS, TUV, GB
Tank Marerial
Steel
Storage Objects
Solid, Liquid, Gas
Name
FRP/GRP Tank Filament Winding Equipment
Purpose
Storage Tank for Acid, Alkali, Salt
Length
1-15m
Advantage
Corrosion Resistant
Transport Package
According to Customer′s Requirement
Specification
1-2500m3
Trademark
ALD
Origin
China
HS Code
8477800000
Production Capacity
200sets/Month

Product Description

What's FRP/GRP Tank Filament Winding Machine? Product Description

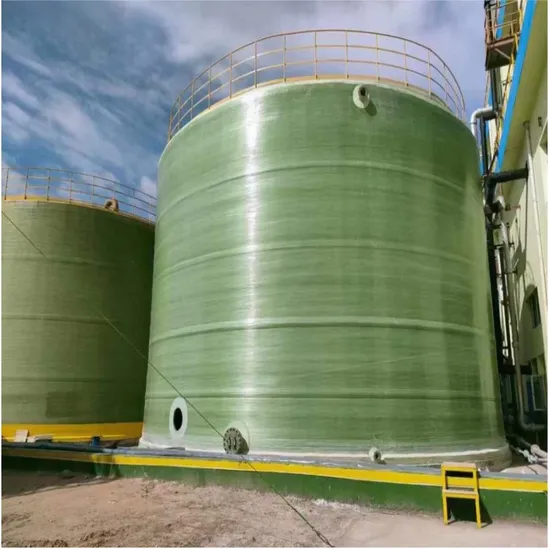

FRP/GRP tank filament winding machine is mainly used for making FRP GRP Fiberglass tanks, such as FRP/GRP horizontal tanks, FRP/GRP vertical tanks, frp fuel tanks, ect.

The key elements such as the transducer, servo system and photoelectrical encoder are from Siemens, Germany; The industrial control computer is made by Yanhua Corporation, Taiwan, showing the Chinese ideograph chrominance, operating easily; After the parameters inputted into the computer, it can be finished the relative design of winding linearity automatically. The combined movements of the main axle and the carriage controlled by the computer, conforms the winding rules, the technical parameters and its inner quality have reached advanced level in China, and the properties are below:
1. FW-4000 computer control filament winding machine
1. The range of diameter can be wound: DN600~ DN4000mm
2. The maxi length: 12000mm
3. The winding angle: 45°<α<90°
4. The total power: 10kw
5. The tolerance of positioning: <1mm
6. The maxi width of roving sheet: 150mm
7. The productivity: 500kg/h
2. Large-scale site winding machine
Be restricted by the transportability, the tank which its diameter is more than DN4000mm has been become the difficult point between the ordering party and the contracting party. To meet the requirements of the order party, our company developed this set of large scale site winding, this set is combined structure, can be assembling or dismountable, the set can be transported to the client site .The set is to be assembled beside the foundation of the large tank according to the requirements of the client, then the large tank can be finished.
I.FW-15000 Computer Control Vertical Site Winding Machine
The major properties of the equipment are below.
2.1 The maxi diameter can be wound: 15000mm
2.2 The maxi length can be wound: 12000mm
2.3 The range of diameter: DN4000~DN15000mm
2.4 The maxi torque: 68350N·m
2.5 The total power: 18.6kw
2.6 The maxi width of roving sheet: 1680mm
2.7 The productivity: 550kg/h
II. FW-25000 Computer Control Vertical Site Winding Machine
1. General
VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to 25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.
2. Parameters of the Winding Machine
Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*
*Note:The productivity and the quantity of strand is based upon the quality of roving
Product Parameters
Model number Control Maxi diameter
(mm)
Maxi length
(mm)
Diameter range
(mm)
Total power
(kw)
Maxi width of roving sheet
(mm)
FW-4000III computer 4000 12000 600~4000 10 150
JFW-1500 semi-automatic 1500 6000 25~1500 5.5 150
JFW-2500 semi-automatic 2500 12000 25~2500 7.5 150


Machines for making large storage tanks on site:
Machine Number Features Type of tank Diamter range (mm)
VFW-10000 computer control Vertical 4000~10000
VFW-15000 computer control Vertical 4000~15000
VFW-25000 computer control Vertical 4000~25000

Packaging & Shipping
Company Profile

FAQ
1. Q: Who are we?A: We are manufacturer, located Hengshui City Hebei Province, China, start from 2016, sell to Eastern Europe(20.00%), Africa(20.00%),Domestic Market(20.00%),South Asia(15.00%),Southeast Asia(15.00%),South America(5.00%),North America(5.00%). Welcome to send your inquiry!2. Q: How about the delivery time?A: Normally, 10-15 days after receiving the deposit to finish the order for a 20' container. Welcome to ask for the detailed delivery time according to your order quantity!3. Q: What's the price of FRP/GRP tank filament winding machine?A: Depends on the size and quantity, welcome to inquire!4. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.5. Q: Can you do OEM for me?A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.6. Q: What can you buy from us?A: FRP/GRP Pipe & fittings, FRP/GRP tank & tower, FRP grating, FRP pultruded profiles, FRP SMC water tank, FRP polymer electrolytic cell, S/F, F/F double wall underground fuel tank, FRP rebar, FRP pipe filament winding machine & technology, FRP tank filament winding machine & technology, FRP molded grating machine & technology, FRP rebar machine & technology, FRP pultrusion machine, FRP polymer electroytic cell machine & technology, Mannheim Process Potassium Sulphate Making Equipment & technology, FRP cable tray, FRP septic tank, Fiber reinforced plastic rod/core, etc,7. Q: What services can we provide?A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
