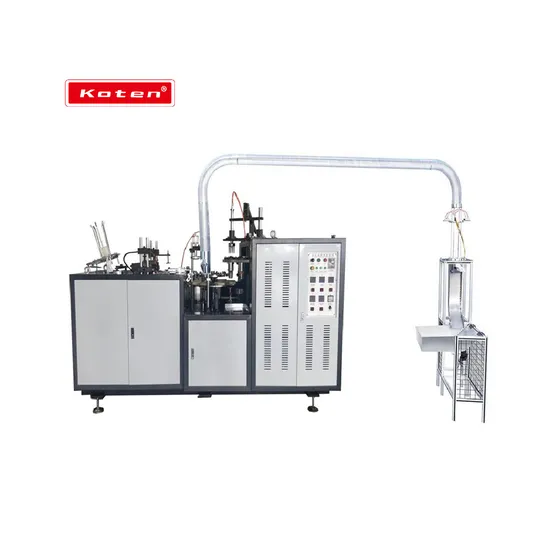

Type: | ZB-D12S |
Cup size: | 2.5-12oz(if the cup is more than 12oz the machine designed more lager ) |
Suitable paper material: | 150-380g/m2(single PE-coated paper) |
Capacity: | 50-70pcs/min |
Power source:: | 380V 50HZ |
Total power: | 4KW |
Weight: | 2000kgs |
Package size: | 2600 x 1350 x 1700 mm |
Working Air Source: | Air pressure 0.4Mpa; Air out-put:0.6m3/min |
A: top diameter:Min 45mm---Max 90mm B: bottom diameterMin 33mm---Max 65mm C: total heightMin 30mm---Max 115mm D: bottom knurling depthMin 4mm---Max 12mm E: rim diameterUsually Φ2.5---Φ3 |
Motor | Main motor | (CHINA) |
| Knurling motor | (CHINA) |
| Reducer | (CHINA) |
| Gear box | (CHINA) |
Electric elements | Frequency converter | DELTA(CHINA) |
| All other electrical parts | CHNT (CHINA) |
| Sensors | (CHINA) |
Pneumatic | Cylinder | (CHINA) |
Bearing | other bearings | (IMPORTED)(CHINA) |
