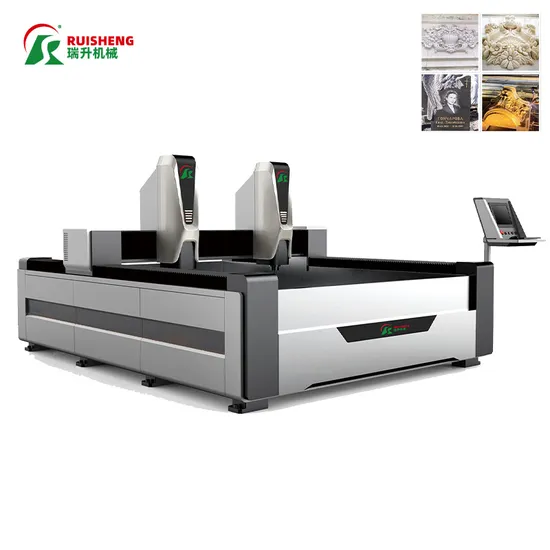

Marble Engraving Machine for Granite Stone CNC Carving

Marble Engraving Machine for Granite Stone CNC Carving

US$8,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RS2030-2D
Function
Hollow out, Cutting, Line Engraving, Intaglio, Lettering
Application Material
Granite
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO
Current
AC
Application
Glass, Ceramics, Decoration, Art & Craft, Stela & Gravestone, Stone Industry
Customized
Customized
Platform Dimensions
2000*2500mm
Workpiece Size
900*2400*2
Feed Height
≤400mm
Spindle Power
5.5-7.5kw
Motor
AC Digital Servo Motor
Operating Voltage
AC220V/50Hz or AC380V/50Hz
Engraving Tool
6/8/10/12/14/16mm
File Format
G/Hpgl
Transport Package
Film Packaging
Specification
3200kg
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
200 Pieces/ Month

Packaging & Delivery

Package Size
320.00cm * 420.00cm * 210.00cm
Package Gross Weight
3500.000kg

Product Description

Product Description
Introducing our Tombstone Engraving Equipment Granite Cutting CNC Machine
Upgrade your stone carving capabilities with our cutting-edge granite cutting CNC machine. This versatile tool is perfect for engraving intricate designs on tombstones, marble, and other types of stone. With advanced technology and precision engineering, our CNC machine ensures high-quality results every time.
Key features include:
Stone engraving machine
CNC router marble
Granite cutting CNC machine
Engraving equipment for tombstones
Whether you're a professional stone carver or a hobbyist looking to expand your skills, our tombstone engraving equipment is a must-have. Invest in the best with our granite cutting CNC machine and take your stone carving to the next level.
Advantage
1.The CNC stone engraving machine is a reliable and versatile machine that comes equipped with a CNC control system and two working heads. This machine is designed for engraving, drilling, lettering, and cutting all kinds of stones, such as marble, granite, quartz, sandstone, or artificial stone, as well as ceramics and glass.
2.Break to rusume function. Continue carving from break point after power resuming from failure.
3.High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy.
4.Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
5.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
6.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
7.The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
8.It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
9.One machine has multiple functions and has a small footprint. It can help customers realize edging and engraving functions of the countertops.
2030T-2D Double-Spindle 3020T-2D/3D/4D
Processing size 2000*3000*300mm 3000*2000mm
Dimension of external form 3200*4300*2300mm 4300*3200*2100mm
Processing material size Double:950*3000mm single:1500*3000mm 1400*1900*2/850*1900*3/650*1900*4
Weight 3.0T 3.6T
Spindle power 7.5KW*2 7.5KW
Spindle speed 24000rm/min 24000rm/min
Voltage 380V/50HZ 380V/50HZ
Motion positioning accuracy ±0.02 mm ±0.02 mm
Repeatability ±0.01 mm ±0.01 mm
air speed 20m/min 20m/min
processing speed 20m/min 20m/min
engraving tool 6/8/10/12/14/16mm 6/8/10/12/14/16mm

After Sales Service
1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3.Technical support all working days
4.A well-trained team of Ruisheng service technicians is at your service. All of them have extensive knowledge and experience in mechanical engineering, which they have gathered during their work in different machine around the world
5.Free training for installation, operation and maintaince
