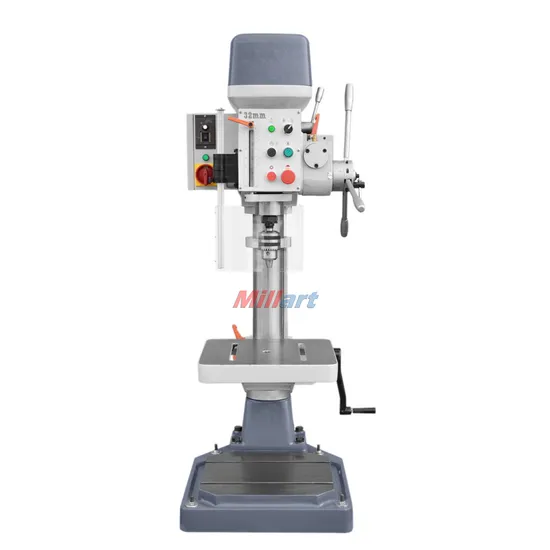

Hot Sale Small Vertical Auto Feeding Drilling Machine Zb4132g Zb4132gp, Bench Top Strong Drilling

Hot Sale Small Vertical Auto Feeding Drilling Machine Zb4132g Zb4132gp, Bench Top Strong Drilling

US$730.00
1-2 Pieces
US$700.00
3+ Pieces

Basic Info.

Model NO.
ZB4132G ZB4132GP
Structure
Auto Drilling Machine
Layout
Vertical
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Drilling Capacity
32mm
Spindle Travel
150mm
Motor Power
1.5kw
N.W/G.W
238kg
Packing Size
104*64*151cm
Transport Package
Plywood
Specification
104*64*151cm
Trademark
Millart
Origin
Shandong, China
Production Capacity
200unites/Month

Product Description

Product Description
Technical parameter :
Feature :
Spindle auto feed with variable feeding rate
High spindle rigidity
Threading by automatic switching of the left turns
The spindle head, column, table and column base made of the highest quality of seasoned castings
Spindle and transmission shafts of hardened and heat treated steel
Built-in led lamp
High engine power
A large spindle stroke
Readable control panel
Working table manually lifted with 360 rotation and assembly grooves
Belt transmission cover equipped with an extreme safety switch
Adjustable drill chuck with key and mounting on the Morse taper
Technical parameter :
Model ZB4132G ZB4132GP
Max.Drilling capacity 32 32
Max.Tapping capacity M24 M24
Diameter of column 100mm 100mm
Spindle travel 150mm 150mm
Spindle feed rate 20-204mm/min 20-204mm/min
Distance spindle axis to column 265mm 265mm
Max.Distance spindle nose to table 390mm 390mm
Max.Distance spindle nose to base 745mm 745mm
Spindle Taper MT3 MT3
No. of Speeds 5 steps 5 steps
Spindle speeds range 280~1875r/min 280~1875r/min
Dimension of workable surface 380x400mm 380x400mm
Dimension of base 310x380mm 310x380mm
Overall height 1130mm 1130mm
Main motor 1.5 kw 1.5 kw
Coolant motor / 0.04kw
Feed motor 90w 90w
weight 238kg 238kg
Packing size 104x64x151cm 104x64x151cm

Sandard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Wrenches
Worktable lifting handle

Optional accessories:
Machine vice
Depth display
Spindle protection
Motorized table lifting

Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
