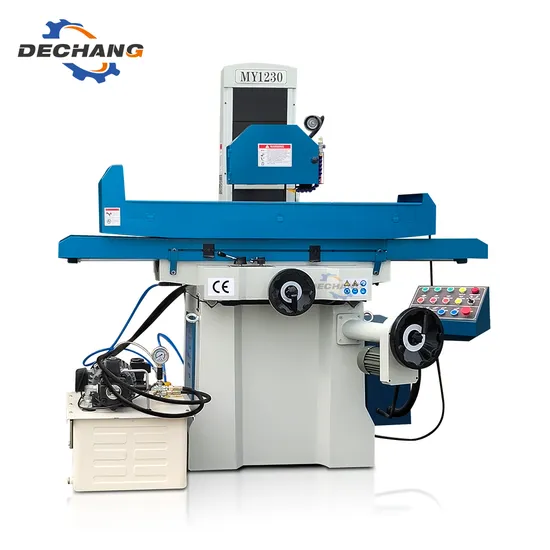

Plane Metal Polishing Machine My1230 High Quality Metal Hydraulic Surface Grinder

Product Description

Plane Metal Polishing Machine MY1230 High Quality Metal Universal Grinding Machine Price
Product Description
Characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Specifications					Units	MY1230
workbench	Worktable size (L * W)				mm	750×300
	Max. travel of table				mm	780×320
	Table T slot (slot number x slot width)				mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	Φ300×30×Φ76.2
	Distance spindle center line to working table				mm	520
	Grinding wheel speed			50HZ	r/min	1450
				60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right) speed				m/min	3-20
	Transverse (front and rear) feed handwheel feed		Continuous (stepless)		mm/min	600
			Intermittent (stepless)		mm/times	0-6
			Handwheel per turn		mm	4.0
			Handwheel per lattice		mm	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn		mm	2.0
			Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)				mm/min	360
Hydraulic system	Hydraulic motor				kw	2.2
	working pressure				Mpa	4
	Fuel tank capacity				L	100
	Maximum flow rate				L/min	20
Motor power		Spindle motor			kw	2.2
		Cooling motor			W	40
		Elevator motor			W	120
working accuracy		The process surface of the base level of the parallel degree			mm	300:0.005
		Surface roughness			μm	Ra0.32
Machine weight		Net weight			kg	1400
		Gross weight			kg	1530
External size (L * w * h)					mm	1960×1480×1850
Packing size (L * w * h)					mm	2000×1640×2020
