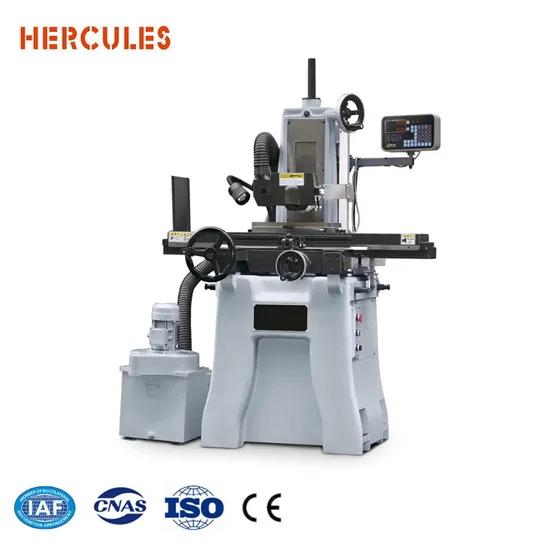

Precision Manual Surface Grinder Machinery with CE

Product Description

Parameters:

Specification	M614	M618
Table size	150×355mm(6×14")	150×457mm(6×18")
Maximum grinding length	375mm(13-3/4)	475mm(18-3/4")
Maximum grinding width	160mm(6-1/3"0)	160mm(6-1/3")
Distance Spindle to table	350-400mm(6×12") customized up to 430mm
About feed
Manual feed	380mm(15")	485mm(19")
Before feeding
Manual feed	180mm(7")
The manual feed per scale	0.02mm(0.001")
The manual feed per revolution	5mm(0.2") or 3mm(0.1")
Lifting feed
Each scale handwheel feed	0.005mm(0.0002")
Handwheel feed per revolution	1mm(0.05")
Grinding wheel
wheel size (diameter×width×diameter)	180mm(7×2/3×1-1/4")
Spindle speed	60Hz/50Hz-3600/3000rpm
Motor
Spindle motor	1.5/2HP
Weight
Net weight	800kgs	850kgs
Packing size	1400×1150×1980mm(52×45×78")	1550×1150×1980mm(55×45×78")

Features:
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
