Basic Info.
Pixel Configuration
1R,1G,1B
Pixel Density
160, 000 DOT/M2
System Operating Platform
WIN XP
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
Certification
CE, RoHS, FCC
LED Lamp
Nation Star /Kinglight
Controller
Nova Star / Colorlight
Refresh Frequency
3840-7680 Hz
Working Voltage
AC 110-240V
Brightness
500-1100 CD/M2
Max Power Consumption
1000W/M2
Transport Package
Wooden Case /Fly Case
Specification
320mm*160mm
Production Capacity
3500 Sqm /Month
Product Description

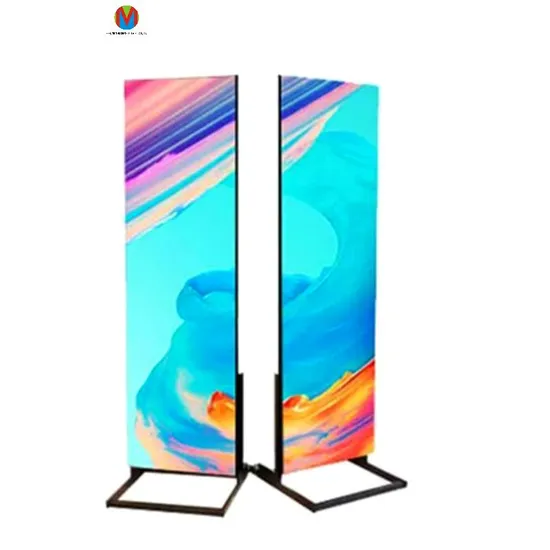

Indoor Outdoor LED Poster Stand Display P1.8 P2 P2.5 P3 Advertising Mirror LED Screen 1.Product Specification :
Item | P1.53 | P1.86 | P2 | P2.5 | P3 |
Pixel Pitch | 1.53mm | 1.86mm | 2mm | 2.5mm | 3mm |
Density | 427,186 pixels/m2 | 289,050 pixels/m2 | 250,000 pixels/m2 | 160,000 pixels/m2 | 105,688 pixel/m2 |
LED type | SMD1515 | SMD1515 | SMD1515 | SMD1515 /2121 | SMD 2121 |
Screen size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm |
Screen resolution | 418*1254 pixel | 344*1032 pixel | 320*960 pixel | 256*768 pixel | 208*624 pixel |
Profile material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Screen weight | 40KG | 40KG | 40KG | 40KG | 40KG |
Driving method | 1/ 52S | 1/ 43 S | 1/ 40 S | 1/ 32 S | 1/ 26 S |
Best viewing distance | 1.5-20m | 1.5-20m | 2-20m | 2-20m | 3-20m |
Brightness | 900nits | 900nits indoor4500 nits outdoor | 900nits indoor4500 nits outdoor | 900nits indoor4500 nits outdoor | 900nits indoor4500 nits outdoor |
Input voltage | AC 110V/220V ± 10% | AC 110V/220V ± 10% | AC 110V/220V ± 10% | AC 110V/220V ± 10% | AC 110V/220V ± 10% |
Max power consumption | 800 W | 800 W | 800 W | 800 W | 800 W |
Average power consumption | 350 W | 350 W | 350 W | 350 W | 350 W |
Control way | 3G /4G/5G /WIFI /USB /LAN |
Application | Indoor / Outdoor /Semi-outdoor |
Certificate | CE ,RoHS ,FCC |
Slim & Lightweight Design MZCLED Poster Screen is lightweight, and the cabinet frame and LED parts are reliable and portable. Frameless design makes theproduct easy to move and be suitable for narrow space.
Unique Base-Standing Bracket
The base-standing bracket can make the LED poster stand on the ground stably. The bracket is movable with 4 wheels, which makes the poster can rotate freely and allow free movement in all directions.Excellent Visual Display
MZCLED Poster Screens are equipped with high-quality LEDs and Driving IC to ensure high refresh rate and high contrast ratio.The Refresh rate is up to 2880Hz and high definition image quality with 5000:1. The brightness reaches to 1000 Nits that provide the viewers with perfect display effect.
Seamless Splicing
MZCLED Poster Screen is designed with quick connectors, and can be connected with other screens to form a large one seamlessly to play as one big screen, offering seamless display performance for better visual effect.
Smart Cloud Management
Poster LED Display supports both synchronous & asynchronous control system, and the contents can be updated via iPad, Phone or Notebook. Real-time play, cross-platform information delivering, USB or WIFI supporting and IOS or Android multi-devices. Besides, it can support the built-in media player to store and play videos and images in all formats.
2. Application Place :
3. Our Factory & Our Service :
A | We have our own factory, from SMT workshop to screen assembly workshop |
B | All of our machine are imported from Germany, North Korea and Japan. |
C | Cooperation with NovaStar,Linsn,colorlight, Mingwei, Bangbei and other brand companies. |
D | Support shipping by sea, by air, by train, TNT,UPS,DHL and other ways |
E | Certifications: CE,RoHS,FCC,TUV. |
F | 72 hours strict aging text to ensure the quality. |
G | 2-5 years warranty. |
H | Provided samples. |
4.CERTIFICATE & COOPERATION BRAND:
5.PACKING:
6.FAQ :Q1. What is the warranty of your led display?A:We offer 3 years warranty.and more than 100,000 hours screen life span .Q2. what is your payment term? How long it takes to delivery?A:We usually accept the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid beforedelivery.The lead time is usually 20 day.Q3. How can you ensure the led display product quality?A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products cantransportation safety and normal use.Q4. What is your pre-sale and post-sale service?A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
