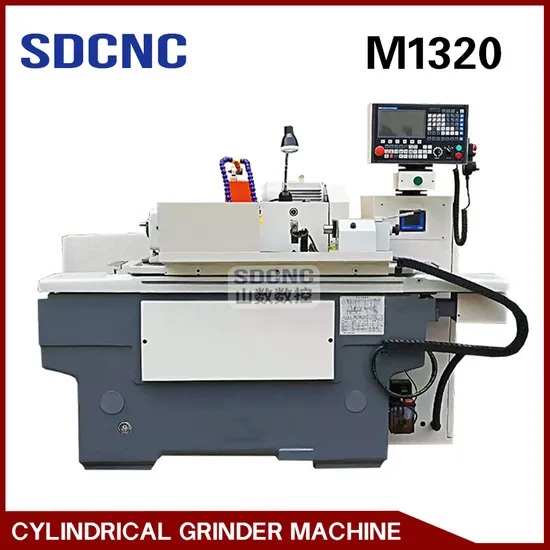

Precision M1320 Universal Cylindrical Grinder Machine
| US$15,000.00-17,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1320
Type
External Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Diameter of Grinding
Dia.8~200mm
Maximum Grinding Length
1000mm
Maximum Spindle Load-Bearing
50kg
Speed of Working Table
100~4000mm/R/Min
Transport Package
Wood Packaging
Specification
3100*1450*1650
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
310.00cm * 145.00cm * 165.00cm
Package Gross Weight
3000.000kg
Product Description
Product DescriptionProduct Parameters
| Cylindrical grinding machine | M1320-1000 |
| Diameter of grinding | Dia.8~200mm |
| Maximum grinding length | 1000mm |
| Maximum spindle load-bearing | 50kg |
| Maximum travel of working table | 1080mm |
| Speed of working table | 100~4000mm/r/min |
| Rotary angel of working table | -3~+7° |
| Rotary angel of headstock | -30~90° |
| Rotary angel of grinding wheel | 180° |
| Center height | 125mm |
| Center sleeve taper | 3# |
| Grinding wheel size | 400*40/50*203 |
| Speed of headstock | 60,85,230,120,170,460r/min |
| Speed of grinding wheel | 1780r/min |
| High-speed travel of grinding wheel | 20mm |
| Maximum travel of grinding wheel | 150mm |
| Feeding rate of grinding wheel handwheel per grid | 0.005mm |
| Feeding rate of grinding wheel handwheel per rev | 1mm |
| Power of grinding wheel motor | 4kw |
| Power of headstock motor | 0.25/0.37kw |
| Power of oil pump motor | 0.75kw |
| Power of cooling motor | 0.125kw |
| Dimension (length * width * height) | 3100*1450*1650 |
| Weight | 3000kg |
| Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32 | |
Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
