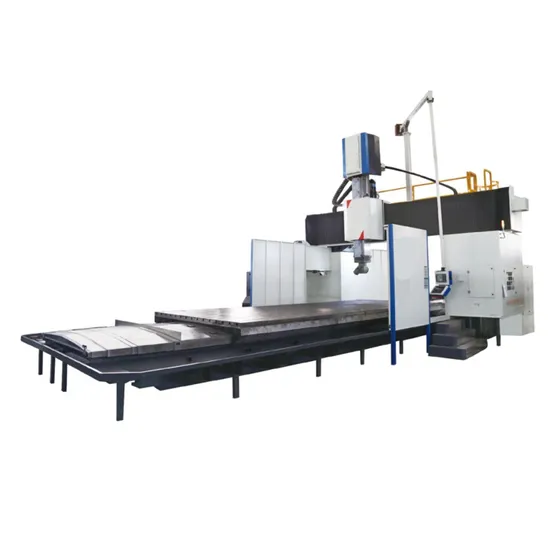

Xh3019/2519 CNC Fixed Beam Gantry Machining Center

Product Description

Product Feature:

Specification	Unit	XH3019	XH2519
Table Width	mm	1500
Table Length	mm	3000	2500
Max Load of Table	kg	8000	7000
T-Slots(Width/Distance/Number)	mm	22X160X9
X-axis Travel	mm	3100	2000
Y-axis Travel	mm	1900
Z-axis Travel	mm	900
Distance from Spindle Nose to Worktable	mm	150-1050
Distance Between Two Columns	mm	1900
Spindle Taper		BT50-190
Spindle Motor	KW	15-18.5
Spindle Speed	rpm	6000
Magazine Capacity		24
Feed Speed (X/Y/Z Axis)	mm/min	1-8000
Rapid Feed Speed(X/Y/Z Axis)	m/min	12/12/10
Positioning Accuracy-X	mm	0.02	0.018
Positioning Accuracy-Y	mm	0.015
Positioning Accuracy-Z	mm	0.015
Re-positioning Accuracy-X	mm	0.012
Re-positioning Accuracy-Y	mm	0.01
Re-positioning Accuracy-Z	mm	0.01
Dimension	m	8.3x4.3x4.9	7.3x4.3x4.9
Weight	Ton	23	20

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
