CNC Beam Drilling Sawing Production Machine Fincm CNC 3 Head Drilling Machine For H Beam

CNC Beam Drilling Sawing Production Machine Fincm CNC 3 Head Drilling Machine For H Beam

US$179,500.00
1 Set
US$179,000.00
2+ Sets

Basic Info.

Model NO.
SWZ1000C
Structure
Three-Dimentional
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
7+3
Hole Diameter
12-33.5mm
Automatic Grade
Automatic
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
H-Beam Web Height H
150 ~ 1000mm
Flange Width B
75 ~ 500mm
U-Beam Web Height
150 ~ 1000mm
Flange Width
75 ~ 300mm
Max. Thickness
80mm
Number of Drillig Power Head
3
Spindle Speed(Variable Speed)
0-2000r/Min
Speed of 3 Positioning CNC Axes
0-10m/Min
Speed of 3 Feeding CNC Axes
0-5m/Min
Inspecting Travel of Web Width
1100mm
Inspecting Travel of Web
290mm
Power of Conveying Cart Servo Motor
5 Kw
Max. Conveying Speed
20m/Min
Air Pressure
0.5MPa
Main Machine Weight
6000Kg
Transport Package
Container
Specification
about 6.0*2.1*3.4m
Trademark
FINCM
Origin
Shandong
HS Code
84592100
Production Capacity
120 Sets Per Year

Product Description

Product Description
CNC Construction Structure U Channel Hydraulic High Speed Drilling Machines150mm*75mm-1000mm*500mm

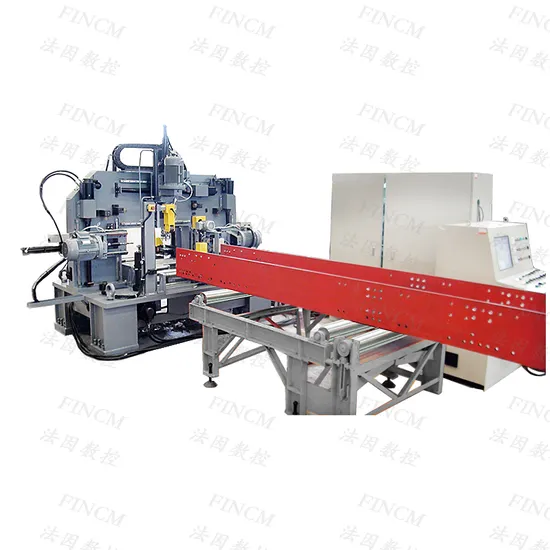

The SWZ1000C three-dimensional CNC drilling machine production line is composed of SWZ1000C three-dimensional CNC drilling machine, feeding trolley and material channel. It can be widely used in steel structure industries such as construction, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, tower masts, etc.
This machine tool is mainly composed of several main parts such as a bed, a CNC sliding table (3), a self-controlled stroke drilling power head (3), a clamping mechanism, a detection device, a cooling system, a chip box, and a safety net.
Equipment advantages:
1.The three drilling power heads can work independently or simultaneously.
2.The spindle speed of each drilling power head is controlled by frequency converter and stepless adjusted; the feed speed is stepless adjusted by speed regulating valve, which can be adjusted rapidly in a large range according to the material of workpiece and diameter of drilling hole.
3.The bed is a frame structure welded by high-quality steel. The steel pipe is strengthened in the place where the force is large. After the welding is completed, the heat aging treatment is performed. These all improve the stability of the bed. Thereby ensuring the accuracy of the entire machine tool.
4.This machine is equipped with workpiece width detection and web height detection devices, which can automatically compensate for machining errors caused by irregular workpiece outlines and improve machining accuracy.
5.The machine tool is equipped with an aerosol cooling system, which has the advantages of less coolant consumption, cost savings and reduced drill bit wear. Detailed Photos

Main Technical Specifications:
Parameter name Unit Parameter value Remark
Scope of work piece Section steel mm 150x75~1000x500
Thickness mm ≤80
Length m 15m Configure according to customer demand
Short material limit mm Automatic processing≥3000
Manual processing:690~3000
Spindle Quantity 3
drill hole
Range
Fixed side, mobile side mm ¢12~¢26.5
Intermediate unit mm ¢12~¢33.5
Spindle speed r/min 180~560
Change the card head quickly / Morse taper hole 3#,,4# Can change to 2#
Axial stroke Fixed side, mobile side mm 140
Intermediate unit mm 325
Axial feed rate mm/min 20~300
Moving distance Each spindle is in the direction of workpiece length mm 520
Both sides of the spindle in the up and down direction mm 35~470 From the lower plane of the workpiece
The intermediate unit is in the direction of workpiece width mm 45~910 From the datum side
Cooling mode Compressed air + cutting fluid / /
Air pressure MPa ≥0.5
Machining accuracy Error of adjacent hole spacing in hole group mm ≤0.5
Feeding error within 10 m length mm ≤1
Electric machinery power Three phase asynchronous motor for spindle rotation kW 4x3 Number of spindles 3
Intermediate unit X-axis servo motor kW 1.0
Z-axis servo motor of intermediate unit kW 1.5
Fixed side and mobile side X-axis servo motor kW 1.0x2
Fixed side and mobile side Y-axis servo motor kW 1.5x2
Moving carriage three phase asynchronous motor kW 0.55
Over dimension mm About 4400×2400×3500
Main Machine Weight kg About 6000

Working temperature: 0ºC~40ºC
power supply:3 phase 4 wire;
voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:
NO. Name Brand Country
1 Linear guide rail HIWIN/CSK Taiwan (China)
2 Electromagnetic hydraulic valve ATOS/YUKEN Italy/Japan
3 Hydraulic pump Just mark Taiwan (China)
4 servo motor Panasonics Japan
5 Servo driver Panasonics Japan
6 PLC MITSUBISHI Japan
7 Spray cooling pump BIJUR USA
8 Flexible extension nozzle BIJUR USA
9 Pneumatic solenoid valve AIRTAC Taiwan (China)
10 Centralized lubrication HERG/BIJUR Japan/USA
11 computer Lenovo China

Note: The above is our fixed supplier. It's subjet to be replaced b other brand components with the same quality level if the above supplier can not supply the components in case of any special reason

Other Products
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
