Easy to Install and Move Psa Medical Oxygen Generator Oxygen Producing Machine

Product Description

Psa Medical Oxygen Generator Oxygen Producing Machine Product Description
Flow rate :60Nm3/hour ( 240cylinders per day)
Purity : 93%~99%
Usage: Hospital and industry

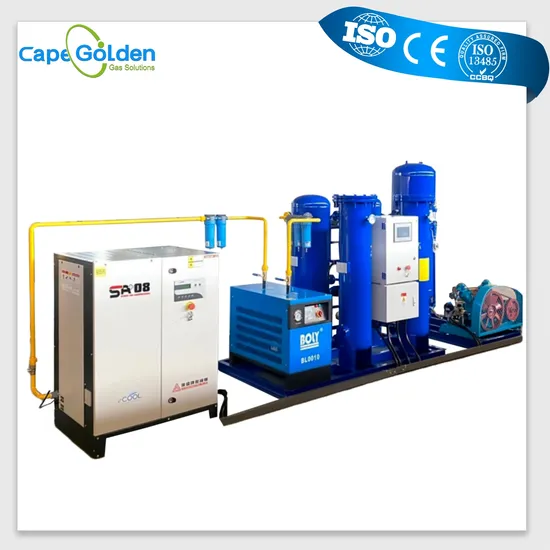

Main components: Air Compressor , Refrigerated Dryer, Air filters ,Oxygen generator , Oxygen booster, filling station , etc.
Description
Oxygen generator system self-contained oxygen system can generate oxygen and fill the oxygen cylinders on site. As a completely standalone oxygen generation system, the Oxygen making & cylinder filling system is fully automated with compact and easy operation design, it can produce oxygen and fill the oxygen cylinders based on actual demand. The Oxygen making & cylinder filling system is one of the best solutions for the small gas businesses; it is affordable and offers a new profit center for your oxygen business. Work Principle of Oxygen generator
The PSA oxygen technology process for the generation of oxygen gas from compressed air utilizes the ability of Zeolite Molecular Sieve (ZMS) to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the ZMS, the qualified purity of oxygen will be produced.

Advantage
* Most reliable technology
* More advanced and more economical air separation modules. extremely low power consumption
* Simple engineering design, Less components = lower maintenance cost
* Automated Operation.
* Turn-key solution and pre-commissioned.
* Skid mounted design, easy installation.
* Durable Molecular Sieve and Steel Structures ensures longer life.
* We take the one-on-one service mode , one customer--one saler--one engineer for evert set of oxygen generator .
Product Parameters:

Place of Origin	Brand	Model	Outlet Dew Point
Beijing China (Mainland)	Cape- Golden	CAOG-30/ 40 feet container	-60ºC~-45ºC
Usage	Capacity	Purity	Material
Medical Oxygen cylinder filling machine	30 Nm3/hour(filling 120cylinders per day)	90~99%	Carbon Steel/ Stainless steel
Delivery time	Working Pressure	Power Consumption	Structure
40days	4~200bar	0.1kw	4towers

Selection table:

CAPE GOLDEN® PSA Oxygen generator for refilling cylinders
Model	Qty of cylinders (pieces/day--24hours) Cyinders: 40L/150bar (storage 6000L gas)	Purity(%) (90%,93%, 95%, 99% optional)	Flow Rate ( Nm3/h)	Flow Rate ( Liter/h)	Flow Rate ( Liter/min)
CAOG-3	12	93~99	3	3,000	50
CAOG-5	20	93~99	5	5,000	83
CAOG-10	40	93~99	10	10,000	167
CAOG-15	60	93~99	15	15,000	250
CAOG-20	80	93~99	20	20,000	333
CAOG-25	100	93~99	25	25,000	417
CAOG-30	120	93~99	30	30,000	500
CAOG-35	145	93~99	35	35,000	583
CAOG-40	160	93~99	40	40,000	667
CAOG-45	180	93~99	45	45,000	750
CAOG-50	200	93~99	50	50,000	833
CAOG-60	240	93~95	60	60,000	1,000
CAOG-70	280	93~95	70	70,000	1,167
CAOG-80	320	93~95	80	80,000	1,333
CAOG-90	360	93~95	90	90,000	1,500
CAOG-100	400	93~95	100	100,000	1,667
CAOG-120	480	93~95	120	120,000	2,000
CAOG-150	600	93~95	150	150,000	2,500

FAQ:
1. Are you manufacturer or Trade Company?
We are PSA air separation factory, founded in 1997.
2. What's the order oxygen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1) Oxygen generator flow rate: _____Nm3/hr
2) Oxygen generator purity: _____%
3) Oxygen generator discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
