3 Layers Ultra-Thin Disposable Underpad Making Machine

3 Layers Ultra-Thin Disposable Underpad Making Machine

US$350,000.00
1 set
US$300,000.00
2+ set

Basic Info.

Model NO.
BYR600
Product Object
Adult
Designed Speed
700PCS/Min
Production Speed
500PCS/Min
Computer Control Panel
Computer Control Panel
Product Specification
Medium
Automatic Grade
Full Automatic
Certification
CE
Condition
New
Product Size
350*450mm,450*600mm,600*600mm,900*600mm
Efficiency
>85%
Installation
350kw, Excluding Air Compressor, Glue Machine
Power Used
400kw
Power Supply
380V, 50Hz
Air Compressor
0.6-0.8MPa
Wastage
<3%
Qualified Rate
>97%
Raw Materials
Fluff Pulp, Nonwoven, Sap, etc.
Machine Size
35m*10m*5.5m
Working Size
38m*12m*7m
Working Weight
70tons
Machine Color
Rich White, Can Be Designed as Customer′s Demand
Machine Direction
Face Machine From Left to Right(Fyi)
Transport Package
Export Standard
Specification
New
Trademark
BAYEUX
Origin
China
HS Code
8441809000
Production Capacity
10

Product Description

MACHINE DETAILS
Design Speed 700pcs/min
Stable Work Speed 500pcs/min
Power Supply 380V±5%,50HZ(3 phase,4lines,ground-in)
Installation 350KW(excluding air compressor,glue machine)
Power Used 400KW
Air Compressor 0.6-0.8Mpa
Product weight Tolerance ±5
Qualified Rate ≥97%(excluding glue,splice,raw jointer defectives)
Efficiency ≥85%
Machine Size(L*W*H) 35m*10m*5.5m
Working Size(L*W*H) 38m*12m*7m
Machine Weight 70Tons
Machine Color Rich White(can be designed as customer's demand)
Machine Direction Face the machine from left to right
(can be designed as customer's demand)

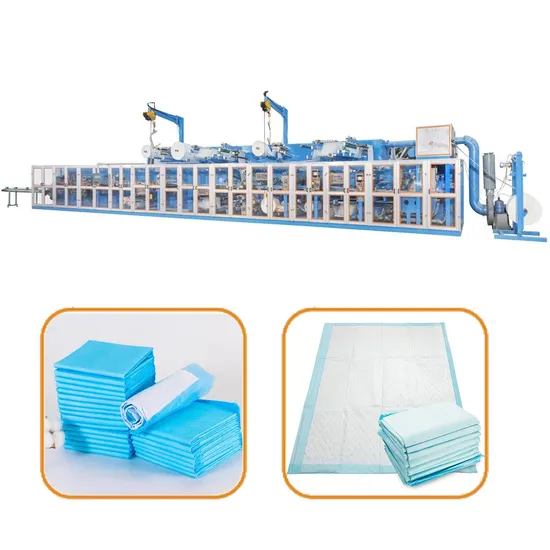

The high speed full automatic disposable underpad making machine incorporates cutting-edge technology and automation to produce high-quality underpads with precision and accuracy. Equipped with a program system, tension system, driven system, safety system, auto packing system, and web guiding system that are all servo-driven, the machine ensures each step of the production process is carried out smoothly and consistently. This results in uniform underpads that meet strict quality standards. The high speed full servo disposable underpad making machine offers versatility in terms of customization options. It adopts servo-driven, digital size changes to accommodate different sizes, shapes, and absorbency levels according to customer requirements. This machine comes in various sizes including 350 mm*450 mm, 450 mm*600 mm, 600 mm*600 mm,and 900mm*600mm. Additionally, it can be designed according to the specific needs of customers. This flexibility allows manufacturers to efficiently cater to a wide range of market demands.
Welcome to choose us and please feel free to contact us at your earliest convenience.
MACHINE FEATURES

MACHINE PRODUCTION WORKSHOP

FINISHED PRODUCTS
PET PAD//UNDERPAD
