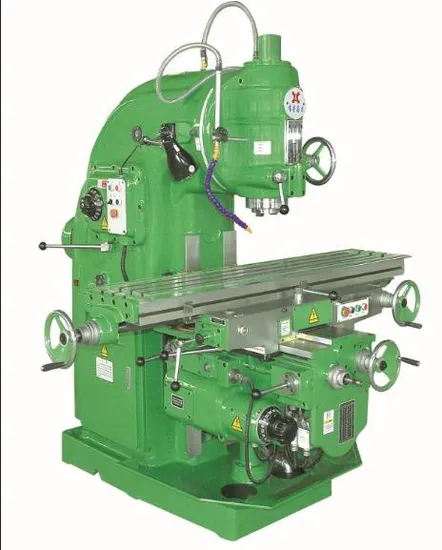

X5040 Vertical Milling Machine with Quick Rapid Feed Speed

Product Description

Product Description

X5040 1700*400 TABLE SIZE WITH QUICK RAPID FEED SPEED XILI MACHINING TOOL
Detailed Photos

The machine can down milling and up milling. Table can rapid feed in cross, longitudinal, vertical directions, which can improve work efficiency. Cross and vertical feed of table is controlled by only one handle. Main drive parts and bearings are automatically lubricated by oil pump, an indicator is set to check the lubricant conveniently. Hand lubrications are set in obvious positions.
Main driving parts and spindle are mounted through rolling bearing, which can improve drive efficiency.
Adjust the spindle bearing to make sure the precision of spindle.
Product Parameters

Spedification	Units	X5040
Table size	mm	1700*400
NO.T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel	mm	900/880
Cross travel	mm	315/300
Verttical travel	mm	385/365
Rapid feed speed	mm/min	X:2300 Y:1540 Z:770
Table feed range	mm/min	23.5-1180/15-786/8/394
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Stroke of spindle quill	mm	85
Max. swivel angle of milling head		±45°
Distance between spindle nose and table surface	mm	115/500
Power of spindle motor	kw	11
Overall dimensions	mm	2556*2159*2298
Net weight	kg	4250

Certifications
Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.
Company Profile

Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.Hope we can built long-term business relationship with you.
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
