High Power Multi Functional Driling Heads

Product Description

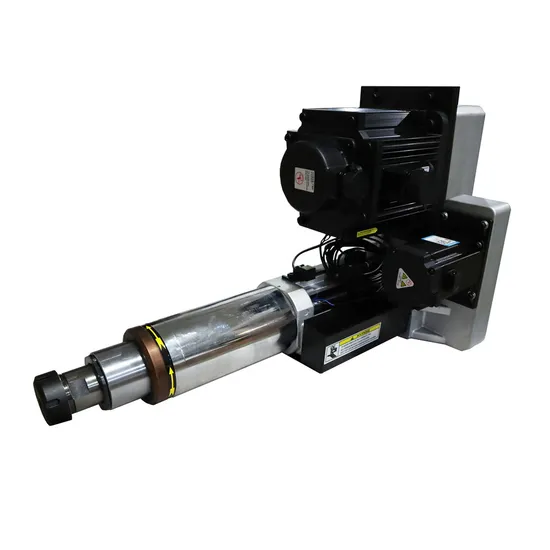

Double servo motor type drilling tapping head with drivers
PRODUCT DESCRIPTION :
*This product adopts imported bearings, proximity switches, high-precision spindle, high-precision sealing ring, high-precision grinding screw, and high-precision automatic drilling and tapping machine.
*The motor adopts aluminum shell, all copper core, high power, multi-process high-precision surface chrome-plated seamless steel pipe body GB Aluminum, precision casting molding.
*The air intake pipe adopts 8mm hose, which are the knife air pipe and the knife air pipe respectively.
*12.9 high-strength limit screw, effectively ensure the accuracy of drilling and tapping depth.
*Three bearings are used in the front and rear to ensure the rotation accuracy, and the shaft tip runs out within 0.01S.

Double servo type drilling head CX-SF104
Spindle				ER40
Spindle Travel				150mm
Spindle Servo Motor				Taiwan Xinjie 3KW
Spindle Speed				0-1500rpm
Feeding Servo Motor				Taiwan Xinjie 1KW
Servo Motor Driver				Taiwan Xinjie
Drilling Diameter				φ3-φ24
Voltage				380V 50HZ
Net weight				59KG
Gross Weight				70KG
Packing Size (L*W*H)				95cm*45cm*30cm

FAQ
1. Are you a manufacturer or trade company? -- Manufacturer
2. What is payment terms? -- 30% deposit, the balance will be paid before delivery
3. What is the warranty time ? -- One year warranty and life time maintenance.
4. Do you provide OEM service?-- Yes
5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.
6. What is the loading port ? -- Shenzhen / Guangzhou port
