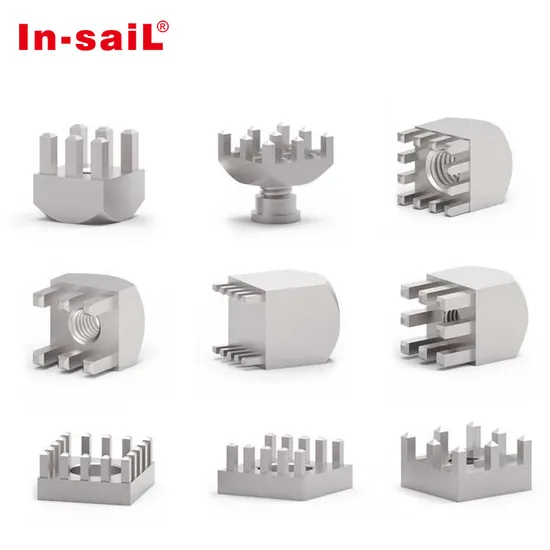

Press Fit Connector Terminals Powerelements with Press-Fit Technology 7461097 7461099 7461061
Basic Info.
Model NO.
LFPE0406B00
Application
Conduct Electricity
Character
High Temperature Resistance
Species
Terminal
Production Process
Machining
Shape
Square
Interface Type
Solder
Certification
BS, UL, VDE
Brand
in-Sail
Surface
Tin
Drill Hole Diameter
1.6mm
Final Hole Diameter
1.475mm
Heat Resistance
-40c up to + 135 C
Unit Net Weight
4.400 G
Current Rating
180A
Certificate
SGS, Materials Certificates
Service
OEM&ODM
Thread Code
M8
Transport Package
Blister Box+Cartons
Specification
SGS, Material certification
Trademark
In-sail
Origin
Shenzhen, China
HS Code
8536904000
Production Capacity
200000 PCS/Week
Product Description
Company Profile ress Fit Internal Thread Battery PCB Connector M8, Full Plain 7461147 Lfpe0406
In-saiL is dedicated to manufacturing of precision components and the design, fabrication of engineering specialty fasteners and fastening solution development.Our production covers the fields of industrial electrical and electronic applications, electromedical, telecommunications and automotive equipment. Manufacturing Capability We have powerful manufacturing capability, our automatic lathes, CNC lathes, CNC machining centers, stamping machines and cold heading machines plus auxiliary equipment like milling machine, grinding machine, EDM and the cooperation of our partners, we are able to support every different components regardless of the prototyping or series production. Auto Lathe Turning The single shaft cam-base automatic lathes are capable of massive production of brass, aluminum alloy, stainless steel components. Production range: O. D. 0.5-15 CNC Milling 4-axis and 5-axis machining centers are capable of complex structural parts. Production range: 800X600 Stamping Stamping machines perform the blanking, punching, blending, drawing. Currently we are working on simple stamping jobs. Production range: 200T max.
| Materials | Brass C3604,CuZn39Pb3 |
| Surfaces | Tin-plated(stand), further surface such as nickel,Sliver,nickel/gold and other on demand |
| Execution | Press-Fit,Through-hole Reflow,SMT soldeing |
| Dimensions | From 5x5 to 22x22mm, height above PCB from 3mm individuallly |
| Tightening Torque | 2.2Nm; 1.2Nm;9Nm;17Nm; 0.5Nm; 1.6Nm |
| Pin Length | Up to 7.5mm(standard of 3.5mm) |
| Pin diagonal | 1.6mm standrad others on demand |
| Final Hole Diameter | 1.475mm |
| Pins | 6, 8, 10, 12,16,25,36 |
| Operating Temperature | -55ºC up to +150ºC |
| Advantages | 1.Very high ampatity,ideally suited for high continuous and peak currents 2. Press-fit connections show extremely high environmental stability. 3. Low-resistance connection meand low self heating, hence less heat must be dissipated through the system. 4. No heat development on sensitive components and no thermal stress of the circuit board. 5. Extremely stable mechanical 6. No problems with cold solder joints 7. High Mechanical retaining forces 8.Double-sided mounting of circuit board is possible 9. Much higher long-term reliability as for solder connections. 10. More secure than soldering and screw connections 11. No Charges in the production of circuit boards necessary. |
