China-Made Ribbon Blender for Pharmaceutical Industry

Product Description

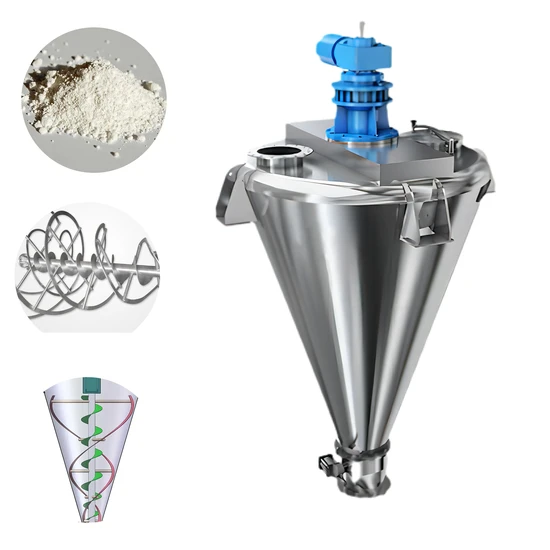

Introducing the Conical Screw Ribbon Mixers, a versatile solution designed for the efficient mixing, stirring, and blending of powders, granular materials, slurries, or viscous substances. These mixers can be customized with a liquid spraying system and are adaptable to operate under various conditions, including vacuum, pressurized, heated, or cooled environments, tailored to user specifications. Such versatility ensures that our mixers meet the diverse mixing and stirring needs for materials under a wide range of process conditions.
The Conical Screw Ribbon Mixers boast powerful mixing capabilities. In operation, materials near the container wall ascend, while those at the center descend, facilitating a gentle yet thorough mixing of flowable materials, thereby achieving exceptional uniformity. This design allows for the efficient and uniform mixing of large quantities of materials in a remarkably short time. The superior discharge mechanism design ensures almost complete discharge of materials from the hopper, significantly minimizing material residue and maximizing efficiency.
Product Features
1. Cantilever Shaft Structure,ensuring that the bearing end does not come into contact with the material, thereby reducing wear and tear.
2. The minimal gap between the agitator blades and the container wall effectively prevents material adhesion , maintaining cleanliness and efficiency.
3.
A standardized agitator drive box that ensures stable operation of the equipment and helps in reducing maintenance costs.
4. Easy-Cleaning : Designed for quick and thorough cleaning between batches, facilitating smooth transitions and maintaining hygiene;
5. Durable Construction : Engineered with robust materials to ensure long-term reliability and performance;
6. Wide Application : Ideal for use in various industries including pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

Product Display Product Structure Application
The Double Cone Mixer is versatile and can be effectively utilized in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food sectors
, ensuring high-quality performance and consistent results.About Our Company Shijiazhuang Rongxin Technology Co., Ltd.
was established in 2007 with its headquarters in Shijiazhuang, the capital city of Hebei Province. Our company specializes inthe design and provision of material handling automation systems. We are esteemed as industry leaders, recognized with numerous patents and accolades, including titles such as 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Our product portfolio includes dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These products are extensively utilized across the metal materials, food processing, chemical, pharmaceutical, and new energy industries.Additionally, we take pride in operating our own production facility featuring advanced manufacturing lines, ensuring the high quality and reliability of our equipment. Company Certification
