US$13,000.00-18,000.00
|
1 Set
(MOQ)
|
Basic Info.
Transmission Method
Machinery
Transport Package
Packed in Container
Specification
5500mmx1500mmx2000mm
Origin
Liaoning Province of China
Production Capacity
20 Sets/Month
Product Description
KR18 Roll Forming Machine
Profile
List of accessories for BOHAI KR18
Name | Amount |
Decoiler | 1 |
Sewing machine | 2 |
Collection table | 1 |
Clamp | 4 |
Bearing ( 208#) | 4 |
Drive chain | 3(run) |
Chain link | 3 |
Half Section | 3 |
Super Pliers | 1 |
Metal Scissors | 1 |
Wrench | 1 |
Travel Switch | 1 ( set) |
Main Technical Parameter
Chassis: 250mm U-steel structural steel welding Forming type: Chain drive Diameter of axle:¢65mm Chain: 16A Forming motor power: 5.5kw Forming speed: 8-15m/min Forming rollers: 12 steps Roller material: 45#steel, coated hard chrome Thickness of coated hard chrome: 0.05mm Hydraulic station motor: 3kw Hydraulic oil pump: Gear pump
Cutting type: Hydraulic cutter Material of cutting part: Cr12, heat treatment HRC58ºC-60ºC Thickness of coils: 0.5-1.3mm Length scale precision: ±2mm Transducer: YASKAWA Controlling system: PLC, touch screen Power: 220V 60HZ 3 phase, 15KW electric generator Size: 5500mmx1500mmx2000mm Weight:5 tons
KR bending machine

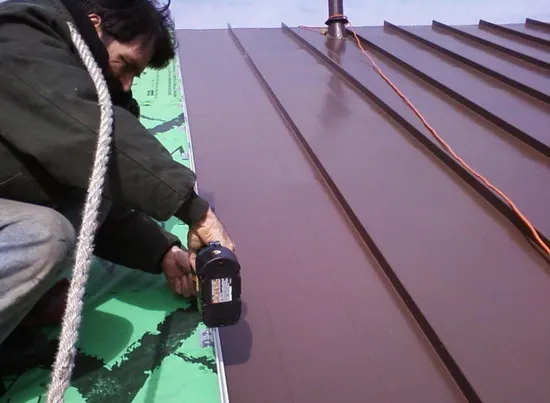

Project
