Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Max Dia Swing Over Bed
1000mm
Max Dia Swing Over Cross Slide
610mm
Max Length of Workpiece
1500mm
Power of Spindle Motor
22kw
Spindle Speed
Vf2 Step 23-260
Z Axis Feed Grade/Range
32/0.1-1.5mm/R
X Axis Feed Grade/Range
32/0.05-0.75mm/R
Carriage Rapid Traverse Speed
3740mm/Min
Cross Slide Rapid Traverse Speed
1870mm/Min
Dimension
5000*2100*1680mm
Transport Package
Wooden Pallet and Wooden Case
Specification
5000*2100*1680mm
Trademark
JOINT MACHINERY
Product Description
This exquisite series of pipe thread lathes is artfully engineered to masterfully process both internal and external threads of pipes, while also functioning seamlessly as ordinary lathes. They are proficient in crafting the outer circle, inner hole, and end face of shafts, pipes, and disc parts. Revered across the petroleum industry, these machines are indispensable for processing and rejuvenating drill pipes, joints, casings, and an array of parts. Their versatility extends to threading various pipelines and drill pipes in industries such as coal, chemical, water conservancy, geological exploration, and more.
√ The impressive big spindle bore combined with the innovative double chuck design allows for the secure clamping and processing of extensive diameter pipes, enabling superior operational flexibility;
√ The integral machine bed, constructed from high-strength iron, ensures unparalleled rigidity and precision, providing a robust foundation for all machining endeavors;
√ The ultrasonic frequency quenched guide-ways offer extraordinary wear-resistance, guaranteeing the durability needed for intensive machining operations;
√ Featuring a sophisticated taper guide bar device, this machine is adept at processing taper threads with remarkable accuracy.
Double Chuck
The remarkable big spindle bore paired with the double chuck configuration empowers it to confidently clamp and meticulously process large-diameter pipes with unparalleled proficiency.
Quenched Guide
The ultrasonic frequency quenched guide-ways are designed to provide exceptional hardness, ensuring outstanding wear-resistance and longevity for enduring performance.

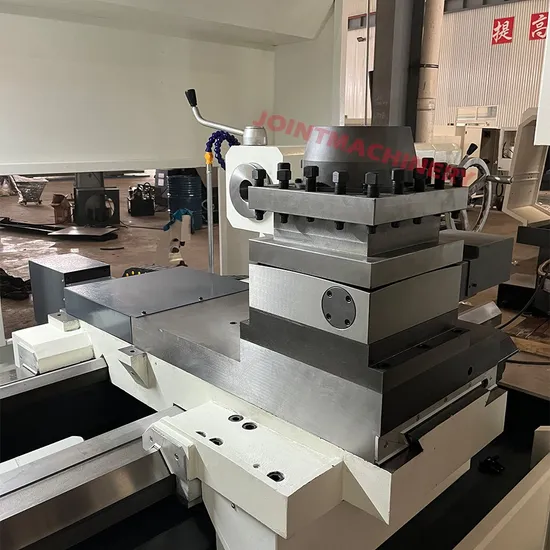

Tool Post Turret
Outfitted with a standard 4-station electric tool post, this system offers optional expansions to 6, 8, 10, or 12 station turret tools. This feature allows for swift tool changes with precision accuracy, dramatically boosting operational efficiency.
Tailstock
Standard configuration includes a manual tailstock, with the option to upgrade to hydraulic or pneumatic tailstock systems, ensuring that operational requirements are met with flexibility and ease.
Oil Country Lathe Big Bore Pipe Machine Lathe Q1343 for Heavy Duty Metal Threading
Item | Unit | Q1343 |
Max diameter swing over bed | mm | 1000 |
Max diameter swing over cross slide | mm | 610 |
Max length of workpiece | mm | 1500 |
Width of bed | mm | 755 |
Spindle bore | mm | 440 |
Power of spindle motor | kw | 22 |
Spindle speed | r/min | VF2 step 23-260 |
Z axis feed grade/range | mm/r | 32/0.1-15 |
X axis feed grade/range | mm/r | 32/0.05-0.75 |
Carriage rapid traverse speed | mm/min | 3740 |
Cross slide rapid traverse speed | mm/min | 1870 |
Metric thread grade/range | mm | 23/1-15 |
Inch thread grade/range | T.P.I | 22/28-2 |
Traverse of cross slide | mm | 520 |
Max traverse of turret | mm | 300 |
Tailstock quill travel | mm | 300 |
Tailstock quill diameter/taper | mm | Φ140/MT6# |
Chuck | | middle Φ1000 4-jaw electric chuck |
Dimension | mm | 5000*2100*1680 |
Net weight | T | 13 |
