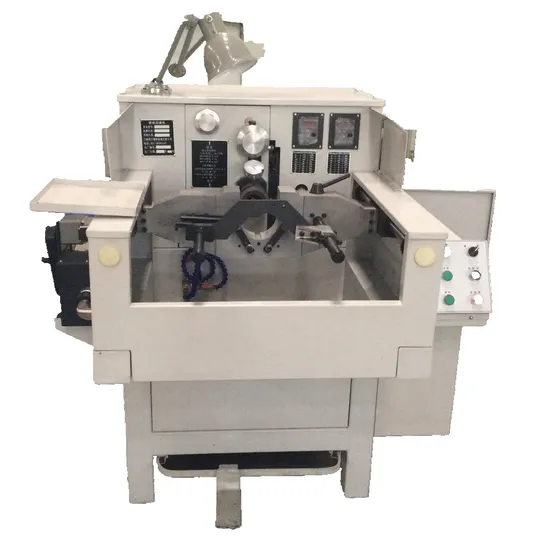

High Precision Similar to Sunnen Honing Machine

High Precision Similar to Sunnen Honing Machine

US$8,000.00 1 Set (MOQ)

Basic Info.

Model NO.
FWH1660
Type
Honing Machine
Processing Object
Gear
Abrasives
Honing
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Honing
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Box
Specification
1350X1040X1367mm
Origin
China
HS Code
8460401000
Production Capacity
300 Sets

Product Description

This honing machine could hone small holes in mass production. Widely used in coupled parts of diesel (oil pump nozzles), such as oil outlet valves, plunger sleeves, nozzles, shift forks, roller bodies, pistons, etc.; inner hole honing of various sewing machine small parts such as connecting rods, rocker arms, copper bushings, etc.; pneumatic Small cylinders, pistons, blind hole cylinders, etc. in the tool industry; various motorcycle gears, cylinder blocks, connecting rods, bushings, etc. Valve sleeves and valve bodies in the hydraulic industry; wind instruments; high-precision honing of inner holes of military parts; cylinder blocks and small connecting rods of agricultural machinery and garden machinery; inner holes of various small gears; mold guide sleeves, sliding sleeves, etc.; ceramic bearings , Honing processing of various ceramic inner holes; graphite mold inner hole; tungsten steel mold inner hole; bearing inner hole. Machine Parameters
NO Items Description
1 Model FWH-1660
2 Pore diameter range: φ2.55-φ60mm
3 Rotation speed of spindle 250-2500 rpm, frequency variable speed regulation
4 Stroke length 0-160 mm
5 Spindle motor 1.5 KW
6 Stroke speed 80-300 times per minute, frequency variable speed regulation.
7 Stroke motor power: 0.75Kw, reduction gear ratio: 10:1, frequency variable speed regulation and brake.
8 Cooling pump 90w, 25 l/min.
9 Total power supply: 2.5 Kw
10 Working capacity of cooling tank: 80L
11 Overall dimension (L x W x H): 1350X100X1250mm
12 Power supply: 3 phase, 380V, 50Hz


Machine Feature ★ Machine structure is mechanical ,make the machine stable quality,easy to maintain
★ Workpiece fixture is simple structure to supply good capacity.
★ Spindle and stroke use inverters to control, have good precision.
★ Stronge dual guide rails support to supply parallel stroke moving.Make machine have long lifetime.
★ The machine have mechanical Zero stop---set finished size , when size is the set size ,machine would stop working.
★ Time honing ----set time , time go off ,machine stop.
★ With several steps with honing tools, could get 0.001mm roundness,straightness would be 0.001mm,Size accuracy could be in 0.005mm
FAQ
Q 1. What products is this honing machine mainly used for?
It is mainly used for workpieces with bore diameter 40-100mm and working depth less than 300mm, and light workpieces such as connecting rods, bushings, gears, oil nozzles, oil pumps and hydraulic parts.
Q 2. What materials can be processed by this honing machine?
This honing machine uses our company's honing tools to process various workpieces. For various workpiece materials, we have diamond, cubic boron nitride, aluminum oxide, silicon carbide and other materials for grinding various workpiece materials.
Q 3. What should users do if they don't understand the honing process?
We will provide you with professional honing solutions for various products. We have served thousands of customers and have rich honing experience as well as rich international trade experience.
If you report problems using pictures and videos, we will provide you with solutions, video explanations, or video conferences to answer your questions.
Q 4. What about the shipping method and payment?
Our company has equipment and tools in stock for a long time. If the tools needed for your honing project are in stock, we can arrange delivery within 15 days. If out of stock, the total delivery time is 1 month.
Our company is a professional trading company providing international trade services, generally based on bank transfer, but also accepts letter of credit, personal transfer and other channels.
Q 5. How to set your company's operating hours?
Our company works and services according to the client's schedule. International trading business has professional knowledge and can quickly provide you with answers and services. You can use wahtsapp, wechat, email, etc. to communicate.
